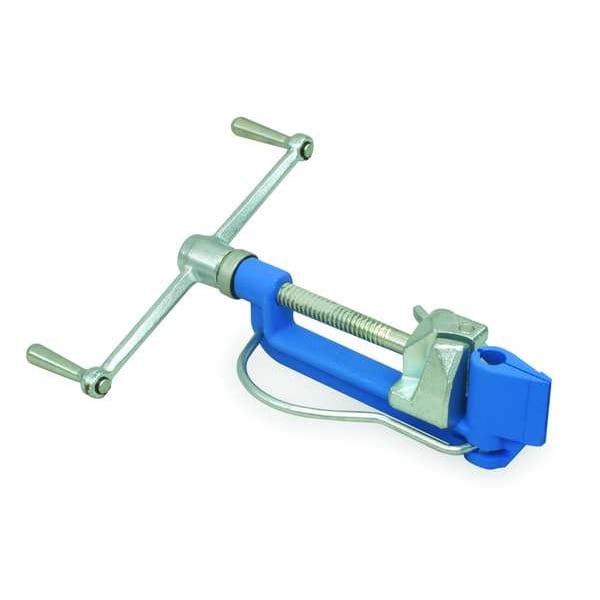

Band Clamp Tool, 3/16 - 3/4 In Cap
| Item | Band Clamp Tool |
|---|---|
| Capacity | 3/16 to 3/4 in |
| Length (In.) | 10-1/2 |
| Width (In.) | 8 |
| Height (In.) | 4-1/8 |
| For Use With | BFEG-A1230-090 to BFVG-A0830-048-P200, BFVG-A0830-048-P300 to BFVG-A0830-068-P100 |
| Characteristics | Applies Tension, Cuts Tail |
| Package Quantity | 1 |
| Includes | Built-In Cutter |
| Features | Applies Tension, Cuts Tail |
| Tool Tension Capacity | Tensions over 2,400 lbs of force and cuts off the tail of the clamp being formed |
| Minimum Band Thickness | 0.015 in |
| Tool Type | Tensioner and Cutter Tool |
| Minimum Strapping Width | 3/16 in |
| Head Rotation | 0 Degrees |
| Tool Width | 8 in |
| Maximum Strapping Width | 3/4 in |
| Compatible Band Material | Stainless Steel |
| Tool Height | 4-1/8 in |
| Fit Strap Tensile | 0.03 in |
| Tool Length | 10-1/2 in |
| Includes Band Cutter | Yes |
| Power Source | Manual |
