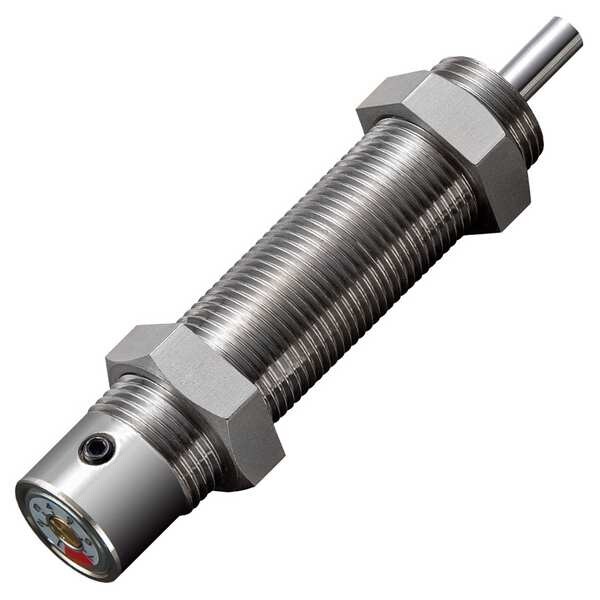

BANSBACH Shock Absorber, Adjustable, Extension Force: 18.1N, Length: 110mm, Stroke: 16mm
| Item | Shock Absorber |
|---|---|
| Type | Adjustable; Multiple Orifice |
| Max. Cycle Rate | 60 cycles/min |
| Force | 18.1 N |
| Material | Metal |
| Operating Temp. | -5~70¡C |
| Rod Thread Size | M20 x 1.5 |
| Compressed Length | Not Applicable |
| Extended Length | 110 mm |
| Includes | Adjustment Knob |
| Fixed Resistance | No |
| Max. Weight | 265 lb |
| Rod Dia. | 6 mm |
| Pin Dia. | 6 mm |
| Adjustable Resistance | Yes |
| Locking | No |
| Cylinder Dia. | 20 mm |
| Stroke | 16 mm |
| Application | For high speed |
| Standards | RoHS Compliant |
| Width | 27.7 mm |
| Weight | 185 g |
| Length | 110 mm |
| Cylinder Diameter | 20 mm |
| Rated Capacity - Maximum | 265 lb |
| Eyelet Thickness | Not Applicable |
| Force Resistance | Adjustable |
| Stroke Length | 16 mm |
| Cycles per Minute - Maximum | 60 |
| Operating Temperature - Maximum | 158 deg F |
| System of Measurement | Metric |
| Rod Diameter | 6 mm |
| Eyelet Diameter | Not Applicable |
| Operating Temperature - Minimum | 23 deg F |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
