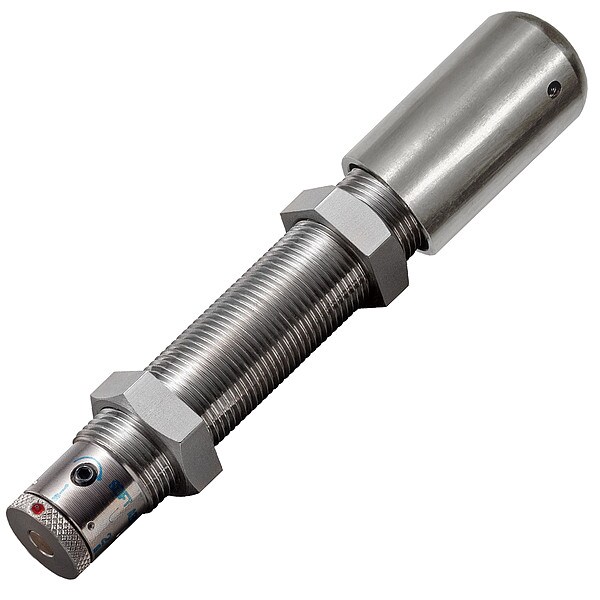

BANSBACH Shock Absorber, Adjustable, Extension Force: 18.1N, Length: 125mm, Stroke: 16mm
| Item | Shock Absorber |
|---|---|
| Type | Adjustable; Multiple-Varying Orifice |
| Force | 18.1 N |
| Max. Cycle Rate | 60 cycles/min |
| Material | Metal |
| Operating Temp. | -5~70¡C |
| Rod Thread Size | M20 x 1.5 |
| Compressed Length | Not Applicable |
| Extended Length | 127 mm |
| Cylinder Dia. | 20 mm |
| Max. Weight | 441 lb |
| Includes | Liquid-proof cap |
| Adjustable Resistance | Yes |
| Stroke | 16 mm |
| Fixed Resistance | No |
| Rod Dia. | 6 mm |
| Locking | No |
| Pin Dia. | 8 mm |
| Application | For medium speed, in particular with a pneumatic cylinder |
| Ball Diameter | 18 mm |
| Standards | RoHS Compliant |
| Weight | 239 g |
| Width | 27.7 mm |
| Length | 125 mm |
| Eyelet Thickness | Not Applicable |
| Cycles per Minute - Maximum | 60 |
| System of Measurement | Metric |
| Eyelet Diameter | Not Applicable |
| Rod Diameter | 6 mm |
| Operating Temperature - Maximum | 158 deg F |
| Stroke Length | 16 mm |
| Force Resistance | Adjustable |
| Rated Capacity - Maximum | 441 lb |
| Cylinder Diameter | 20 mm |
| Operating Temperature - Minimum | 23 deg F |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
