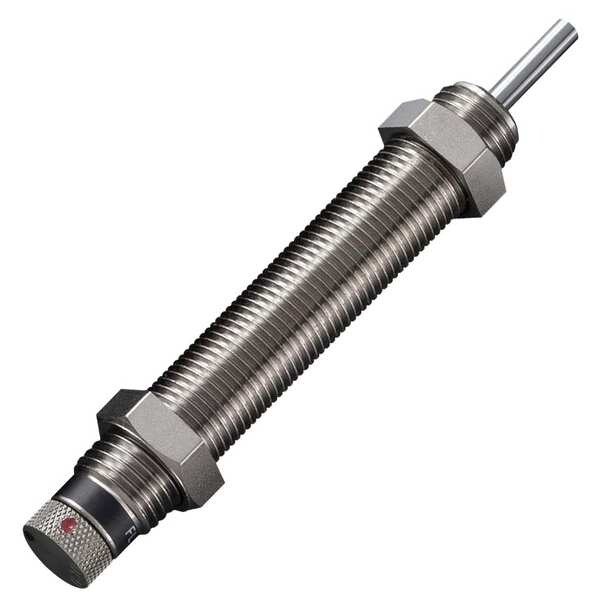

BANSBACH Shock Absorber, Adjustable, Extension Force: 19.6N, Length: 128mm, Stroke: 20mm
| Item | Shock Absorber |
|---|---|
| Type | Adjustable |
| Max. Cycle Rate | 60 cycles/min |
| Force | 19.6 N |
| Material | Metal |
| Operating Temp. | -5~70¡C |
| Rod Thread Size | M16 x 1.5 |
| Compressed Length | Not Applicable |
| Extended Length | 128 mm |
| Cylinder Dia. | 16 mm |
| Rod Dia. | 5 mm |
| Fixed Resistance | No |
| Locking | No |
| Max. Weight | 132 lb |
| Stroke | 20 mm |
| Adjustable Resistance | Yes |
| Includes | Adjustment Knob |
| Application | For high speed |
| Standards | RoHS Compliant |
| Length | 128 mm |
| Weight | 124 g |
| Width | 21.9 mm |
| Rated Capacity - Maximum | 132 lb |
| System of Measurement | Metric |
| Operating Temperature - Minimum | 23 deg F |
| Eyelet Thickness | Not Applicable |
| Force Resistance | Adjustable |
| Rod Diameter | 5 mm |
| Stroke Length | 20 mm |
| Operating Temperature - Maximum | 158 deg F |
| Eyelet Diameter | Not Applicable |
| Cycles per Minute - Maximum | 60 |
| Cylinder Diameter | 16 mm |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
