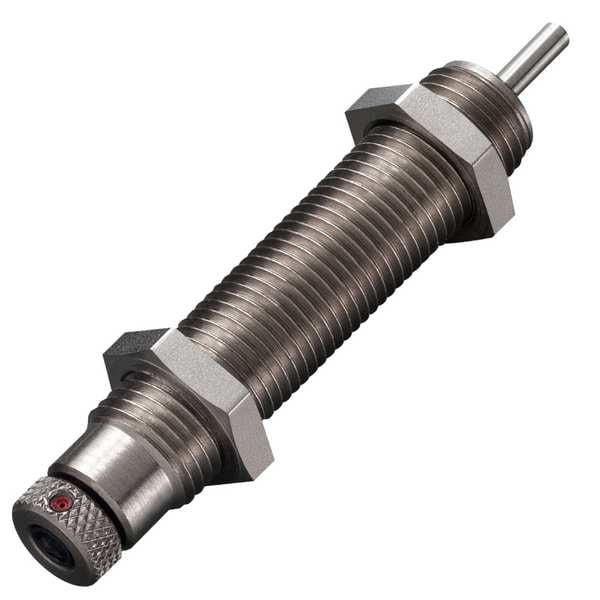

BANSBACH Shock Absorber, Adjustable, Extension Force: 5.88N, Length: 58.9mm, Stroke: 8mm
| Item | Shock Absorber |
|---|---|
| Type | Adjustable; Multiple-Varying Orifice |
| Force | 5.88 N |
| Max. Cycle Rate | 60 cycles/min |
| Material | Metal |
| Operating Temp. | -5~70¡C |
| Rod Thread Size | M10 x 1 |
| Compressed Length | Not Applicable |
| Extended Length | 58.9 mm |
| Locking | No |
| Stroke | 8 mm |
| Adjustable Resistance | Yes |
| Cylinder Dia. | 10 mm |
| Fixed Resistance | No |
| Rod Dia. | 2.4 mm |
| Max. Weight | 22 lb |
| Includes | Adjustment Knob |
| Application | For medium speed, in particular with a pneumatic cylinder |
| Standards | RoHS Compliant |
| Weight | 26.5 g |
| Length | 58.9 mm |
| Width | 15 mm |
| Cycles per Minute - Maximum | 60 |
| Cylinder Diameter | 10 mm |
| Rod Diameter | 2.4 mm |
| Eyelet Diameter | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Stroke Length | 8 mm |
| Rated Capacity - Maximum | 22 lb |
| Force Resistance | Adjustable |
| Eyelet Thickness | Not Applicable |
| Operating Temperature - Minimum | 23 deg F |
| System of Measurement | Metric |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
