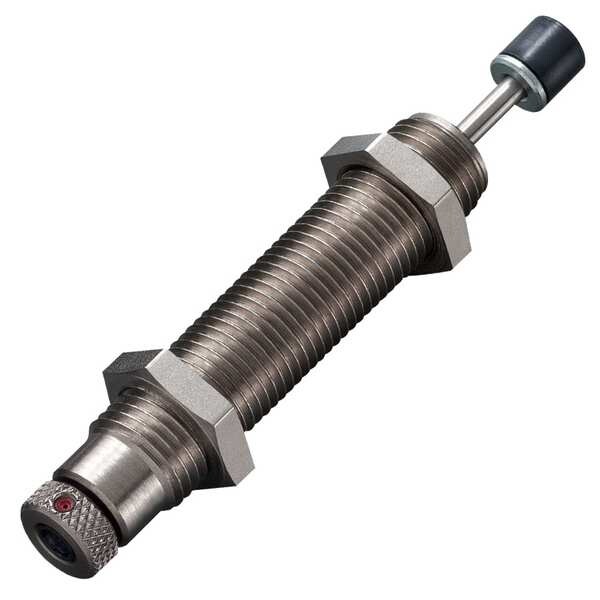

BANSBACH Shock Absorber, Adjustable, Extension Force: 5.88N, Length: 65.2mm, Stroke: 8mm
| Item | Shock Absorber |
|---|---|
| Type | Adjustable; Multiple-orifice |
| Max. Cycle Rate | 60 cycles/min |
| Force | 5.88 N |
| Material | Metal |
| Operating Temp. | -5~70¡C |
| Rod Thread Size | M10 x 1 |
| Compressed Length | Not Applicable |
| Extended Length | 65.2 mm |
| Locking | No |
| Fixed Resistance | No |
| Includes | Cap |
| Adjustable Resistance | Yes |
| Rod Dia. | 2.4 mm |
| Cylinder Dia. | 10 mm |
| Max. Weight | 5.5 lb |
| Stroke | 8 mm |
| Pin Dia. | 2.4 mm |
| Ball Diameter | 6 mm |
| Standards | RoHS Compliant |
| Application | For high speed |
| Width | 15 mm |
| Length | 65.2 mm |
| Weight | 27 g |
| Operating Temperature - Maximum | 158 deg F |
| Force Resistance | Fixed |
| Eyelet Thickness | Not Applicable |
| Eyelet Diameter | Not Applicable |
| Rated Capacity - Maximum | 5.5 lb |
| Cylinder Diameter | 10 mm |
| Stroke Length | 8 mm |
| Operating Temperature - Minimum | 23 deg F |
| Cycles per Minute - Maximum | 60 |
| Rod Diameter | 2.4 mm |
| System of Measurement | Metric |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
