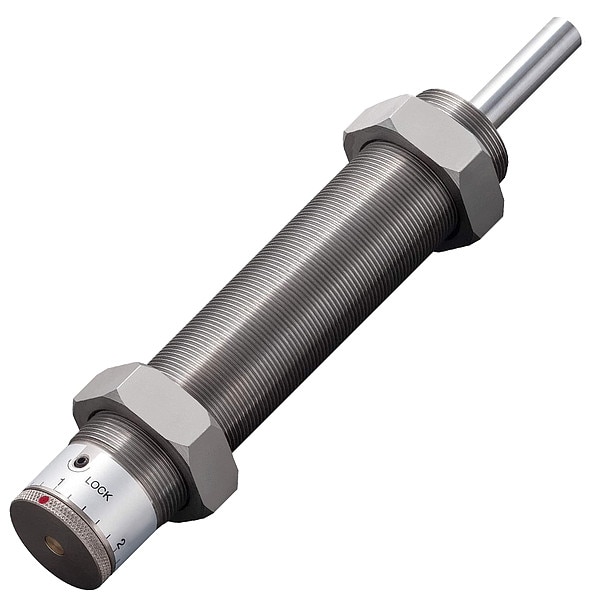

BANSBACH Shock Absorber, Adjustable, Extension Force: 68.6N, Length: 235mm, Stroke: 50mm
| Item | Shock Absorber |
|---|---|
| Type | Adjustable; Multiple-Varying Orifice |
| Max. Cycle Rate | 30 cycles/min |
| Force | 68.6 N |
| Material | Metal |
| Operating Temp. | -5~70¡C |
| Rod Thread Size | M36 x 1.5 |
| Compressed Length | Not Applicable |
| Extended Length | 235 mm |
| Includes | Adjustment Knob |
| Stroke | 50 mm |
| Cylinder Dia. | 36 mm |
| Pin Dia. | 10 mm |
| Adjustable Resistance | Yes |
| Max. Weight | 5,953 lb |
| Ball Diameter | 27 mm |
| Locking | No |
| Rod Dia. | 12 mm |
| Fixed Resistance | No |
| Application | For medium speed, in particular with a pneumatic cylinder |
| Standards | RoHS Compliant |
| Weight | 1,330 g |
| Width | 53.1 mm |
| Length | 235 mm |
| Eyelet Thickness | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| System of Measurement | Metric |
| Force Resistance | Adjustable |
| Rod Diameter | 12 mm |
| Operating Temperature - Minimum | 23 deg F |
| Rated Capacity - Maximum | 5,953 lb |
| Stroke Length | 50 mm |
| Cycles per Minute - Maximum | 30 |
| Eyelet Diameter | Not Applicable |
| Cylinder Diameter | 36 mm |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
