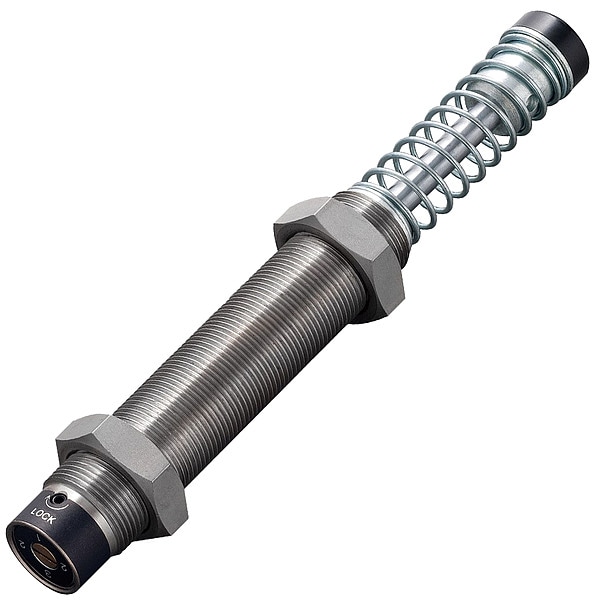

BANSBACH Shock Absorber, Adjustable, Extension Force: 71.4N, Length: 200.5mm, Stroke: 40mm
| Item | Shock Absorber |
|---|---|
| Type | Adjustable; Multiple Orifice |
| Force | 71.4 N |
| Max. Cycle Rate | 60 cycles/min |
| Material | Metal |
| Operating Temp. | -5~70¡C |
| Rod Thread Size | M25 x 1.5 |
| Compressed Length | Not Applicable |
| Extended Length | 200.5 mm |
| Fixed Resistance | No |
| Cylinder Dia. | 25 mm |
| Adjustable Resistance | Yes |
| Max. Weight | 441 lb |
| Rod Dia. | 8 mm |
| Includes | Cap |
| Stroke | 40 mm |
| Locking | No |
| Ball Diameter | 22 mm |
| Application | For high speed |
| Standards | RoHS Compliant |
| Weight | 475.1 g |
| Width | 37 mm |
| Length | 200.5 mm |
| Operating Temperature - Maximum | 158 deg F |
| Force Resistance | Adjustable |
| Stroke Length | 40 mm |
| Operating Temperature - Minimum | 23 deg F |
| System of Measurement | Metric |
| Rod Diameter | 8 mm |
| Cycles per Minute - Maximum | 60 |
| Rated Capacity - Maximum | 441 lb |
| Cylinder Diameter | 25 mm |
| Eyelet Thickness | Not Applicable |
| Eyelet Diameter | Not Applicable |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
