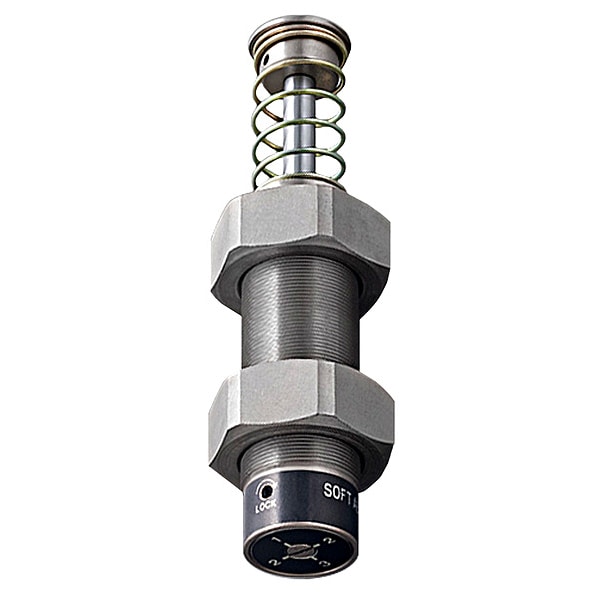

BANSBACH Shock Absorber, Adjustable, Extension Force: 83.3N, Length: 212.5mm, Stroke: 50mm
| Item | Shock Absorber |
|---|---|
| Type | Adjustable; Multiple-Orifice |
| Force | 83.3 N |
| Max. Cycle Rate | 10 cycles/min |
| Material | Metal |
| Operating Temp. | -5~70¡C |
| Rod Thread Size | M42 x 1.5 |
| Compressed Length | Not Applicable |
| Extended Length | 212.5 mm |
| Rod Dia. | 12 mm |
| Cylinder Dia. | 42 mm |
| Fixed Resistance | No |
| Adjustable Resistance | Yes |
| Locking | No |
| Includes | Cap |
| Max. Weight | 860 lb |
| Stroke | 50 mm |
| Ball Diameter | 38 mm |
| Application | For high speed |
| Standards | RoHS Compliant |
| Width | 66 mm |
| Weight | 1,940 g |
| Length | 212.5 mm |
| System of Measurement | Metric |
| Stroke Length | 50 mm |
| Eyelet Diameter | Not Applicable |
| Eyelet Thickness | Not Applicable |
| Operating Temperature - Minimum | 23 deg F |
| Rod Diameter | 12 mm |
| Cycles per Minute - Maximum | 10 |
| Force Resistance | Adjustable |
| Rated Capacity - Maximum | 860 lb |
| Cylinder Diameter | 42 mm |
| Operating Temperature - Maximum | 158 deg F |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
