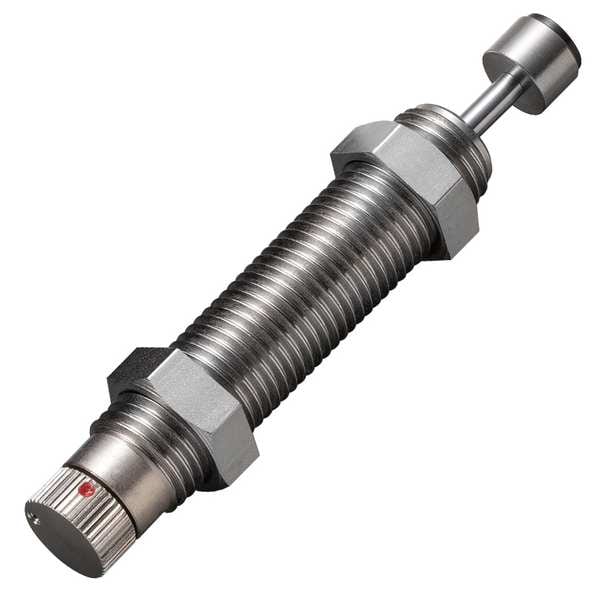

BANSBACH Shock Absorber, Adjustable, Extension Force: 9.8N, Length: 88mm, Stroke: 10mm
| Item | Shock Absorber |
|---|---|
| Type | Adjustable; Multiple-Varying Orifice |
| Force | 9.8 N |
| Max. Cycle Rate | 60 cycles/min |
| Material | Metal |
| Operating Temp. | -5~70¡C |
| Rod Thread Size | M14 x 1.5 |
| Compressed Length | Not Applicable |
| Extended Length | 88 mm |
| Includes | Cap |
| Fixed Resistance | No |
| Locking | No |
| Adjustable Resistance | Yes |
| Rod Dia. | 3.5 mm |
| Stroke | 10 mm |
| Max. Weight | 77 lb |
| Cylinder Dia. | 14 mm |
| Standards | RoHS Compliant |
| Application | For medium speed, in particular with a pneumatic cylinder |
| Ball Diameter | 10 mm |
| Width | 19.6 mm |
| Weight | 99 g |
| Length | 88 mm |
| Rod Diameter | 3.5 mm |
| Operating Temperature - Maximum | 158 deg F |
| Stroke Length | 10 mm |
| Operating Temperature - Minimum | 23 deg F |
| Eyelet Diameter | Not Applicable |
| Rated Capacity - Maximum | 77 lb |
| Eyelet Thickness | Not Applicable |
| Cycles per Minute - Maximum | 60 |
| Cylinder Diameter | 14 mm |
| Force Resistance | Adjustable |
| System of Measurement | Metric |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
