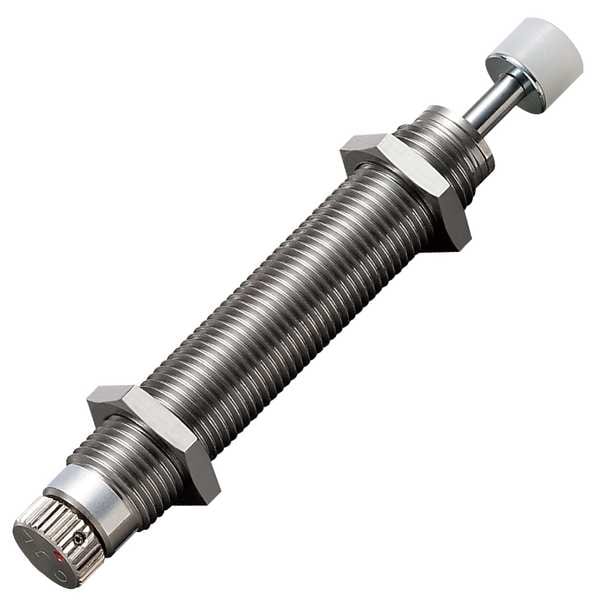

BANSBACH Shock Absorber, Adjustable, Extension Force: 9N, Length: 58mm, Stroke: 6mm
| Item | Shock Absorber |
|---|---|
| Type | Adjustable; Single-orifice |
| Force | 9 N |
| Max. Cycle Rate | 45 cycles/min |
| Material | Metal |
| Operating Temp. | -5~70¡C |
| Rod Thread Size | M8 x 0.75 |
| Compressed Length | Not Applicable |
| Extended Length | 58 mm |
| Stroke | 6 mm |
| Includes | Cap |
| Rod Dia. | 2.5 mm |
| Locking | No |
| Max. Weight | 33 lb |
| Pin Dia. | 2.5 mm |
| Ball Diameter | 6 mm |
| Fixed Resistance | No |
| Cylinder Dia. | 8 mm |
| Adjustable Resistance | Yes |
| Standards | RoHS Compliant |
| Application | For low to medium speed |
| Weight | 14.1 g |
| Width | 12.7 mm |
| Length | 58 mm |
| System of Measurement | Metric |
| Rated Capacity - Maximum | 33 lb |
| Force Resistance | Adjustable |
| Stroke Length | 6 mm |
| Rod Diameter | 2.5 mm |
| Eyelet Thickness | Not Applicable |
| Eyelet Diameter | Not Applicable |
| Cycles per Minute - Maximum | 45 |
| Cylinder Diameter | 8 mm |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | 23 deg F |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
