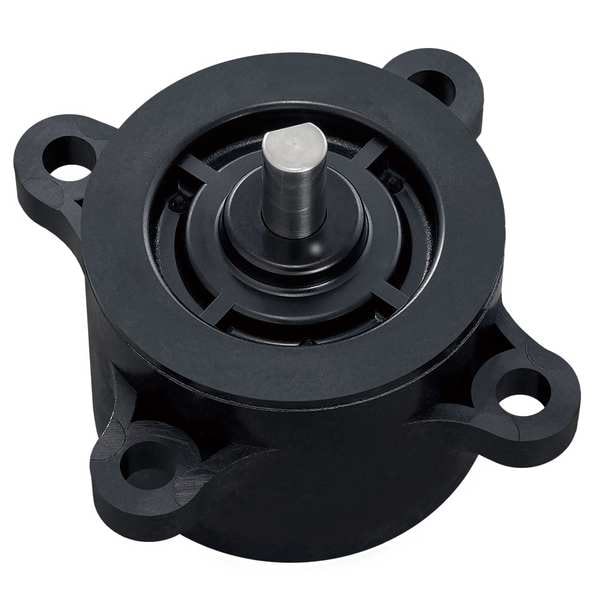

Rotary Damper, 50 rpm, Clockwise
| Item | Rotary Damper |
|---|---|
| Max. Rotation Speed | 50 rpm |
| Type | Rotary |
| Max. Cycle Rate | 10 cycles/min |
| Operating Temp. | 0~50¡C |
| Body Material | Polycarbonate + Glass fiber |
| Shaft Material | Metal |
| Application | Control speed, Dampen drivers |
| Damping Direction | Counter-clockwise |
| Gear Material | Polyacetal |
| Torque | 1±0.2 Nm |
| Overall Length | 47 mm |
| Weight | 56.6 g |
| Width | 40 mm |
| Length | 47 mm |
| Height | 42 mm |
| Overall Width | 47 mm |
| Color | Black |
| Center-to-Center Mounting Hole Distance | 36 mm |
| Rotation Speed - Maximum | 50 RPM |
| Cycle Rate - Maximum | 10 per min |
| System of Measurement | Metric |
| Dampening Direction | Counterclockwise |
| Operating Temperature - Maximum | 122 deg F |
| Shaft Width | 6 mm |
| Shaft Length | 10 mm |
| Operating Temperature - Minimum | 32 deg F |
| Shaft Type | Gearless |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
