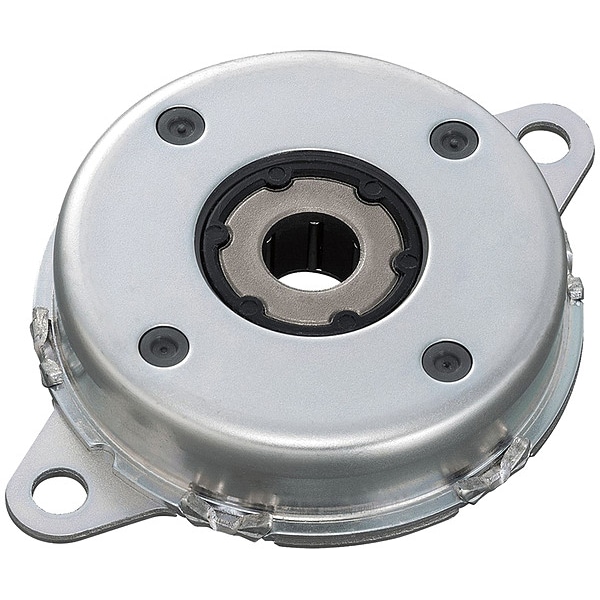

Rotary Damper, Disk, 3 Nm
| Item | Rotary Damper |
|---|---|
| Type | Disk |
| Max. Rotation Speed | 50 rpm |
| Max. Cycle Rate | 12 cycles/min |
| Material | Iron |
| Operating Temp. | -10~50¡C |
| Torque | 3±0.4 Nm |
| Damper Type | Disk |
| Fixed Resistance | Yes |
| Adjustable Resistance | No |
| Locking | No |
| Body Material | Iron |
| Application | Control speed, Dampen drivers |
| Shaft Material | Nylon |
| Damping Direction | Counter-clockwise |
| Length | 79 mm |
| Overall Length | 79 mm |
| Height | 13.8 mm |
| Width | 57 mm |
| Weight | 94 g |
| Overall Width | 52.4 mm |
| Operating Temperature - Maximum | 122 deg F |
| Dampening Direction | Counterclockwise |
| System of Measurement | Metric |
| Operating Temperature - Minimum | 14 deg F |
| Shaft Type | Disk |
| Center-to-Center Mounting Hole Distance | 68 mm |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
