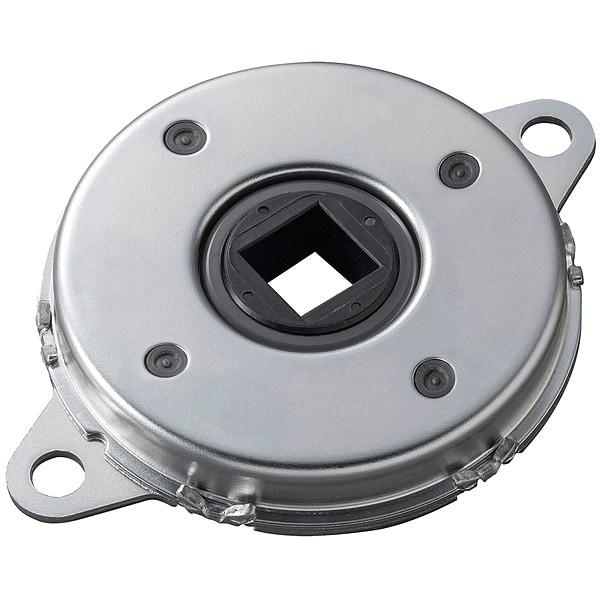

Rotary Damper, Metal, 2.0 Nm
| Item | Rotary Damper |
|---|---|
| Type | Disk |
| Max. Rotation Speed | 50 rpm |
| Max. Cycle Rate | 12 cycles/min |
| Material | Iron |
| Operating Temp. | -10~50¡C |
| Locking | No |
| Adjustable Resistance | No |
| Fixed Resistance | Yes |
| Torque | 2±0.3 Nm |
| Damper Type | Disk |
| Damping Direction | Both directions |
| Application | Control speed, Dampen drivers |
| Shaft Material | Nylon |
| Body Material | Iron |
| Width | 47 mm |
| Length | 65 mm |
| Overall Width | 42.8 mm |
| Height | 10.3 mm |
| Overall Length | 65 mm |
| Weight | 50 g |
| Center-to-Center Mounting Hole Distance | 56 mm |
| Operating Temperature - Maximum | 122 deg F |
| Shaft Type | Disk |
| Operating Temperature - Minimum | 14 deg F |
| Dampening Direction | Two-Sided Rotation |
| System of Measurement | Metric |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
