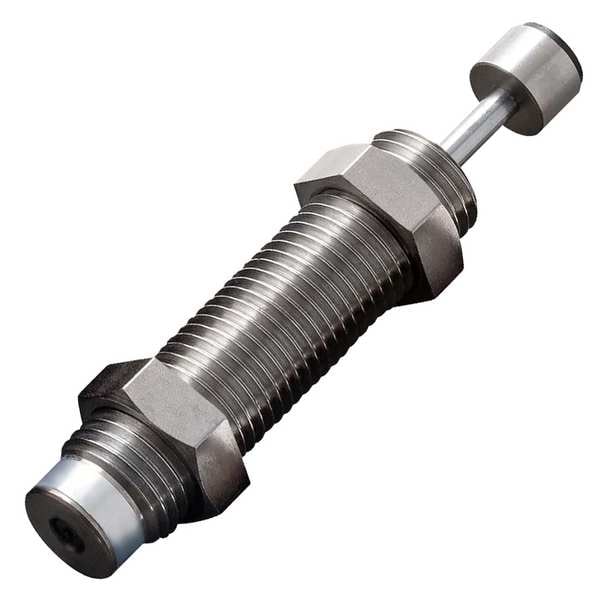

Shock Absorber, 165 lb., M14x1.5, 78mm L
| Item | Shock Absorber |
|---|---|
| Type | Fixed |
| Force | 8.9 N |
| Max. Cycle Rate | 60 per min |
| Material | Steel |
| Rod Thread Size | M14 x 1.5 |
| Compressed Length | Not Applicable |
| Extended Length | 78 mm |
| Stroke | 12 mm |
| Max. Weight | 165 lb |
| Cylinder Dia. | 14 mm |
| Rod Dia. | 3.5 mm |
| Locking | No |
| Fixed Resistance | Yes |
| Includes | Cap |
| Adjustable Resistance | No |
| Ball Diameter | 10 mm |
| Standards | RoHS Compliant |
| Eyelet Diameter | Not Applicable |
| Eyelet Thickness | Not Applicable |
| System of Measurement | Metric |
| Cycles per Minute - Maximum | 60 |
| Force Resistance | Fixed |
| Rated Capacity - Maximum | 165 lb |
| Stroke Length | 12 mm |
| Rod Diameter | 3.5 mm |
| Cylinder Diameter | 14 mm |
| Operating Temperature - Minimum | 23 deg F |
| Operating Temperature - Maximum | 158 deg F |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
