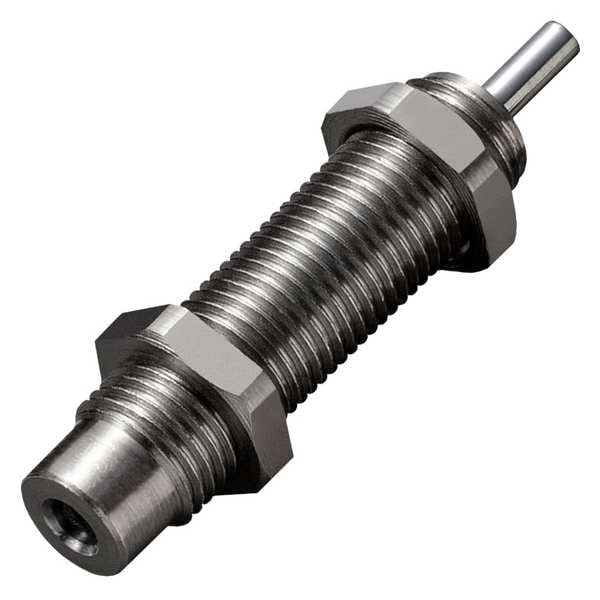

Shock Absorber, 44 lb., M10x1.0, 48mm L
| Item | Shock Absorber |
|---|---|
| Type | Fixed |
| Force | 4.9 N |
| Max. Cycle Rate | 60 per min |
| Material | Steel |
| Rod Thread Size | M10 x 1 |
| Compressed Length | Not Applicable |
| Extended Length | 48 mm |
| Adjustable Resistance | No |
| Fixed Resistance | Yes |
| Rod Dia. | 3 mm |
| Cylinder Dia. | 10 mm |
| Locking | No |
| Max. Weight | 5.5 lb |
| Stroke | 8 mm |
| Standards | RoHS Compliant |
| Stroke Length | 8 mm |
| Operating Temperature - Minimum | 23 deg F |
| Eyelet Diameter | Not Applicable |
| Force Resistance | Fixed |
| Rod Diameter | 3 mm |
| Cylinder Diameter | 10 mm |
| Eyelet Thickness | Not Applicable |
| Cycles per Minute - Maximum | 60 |
| Operating Temperature - Maximum | 158 deg F |
| Rated Capacity - Maximum | 5.5 lb |
| System of Measurement | Metric |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
