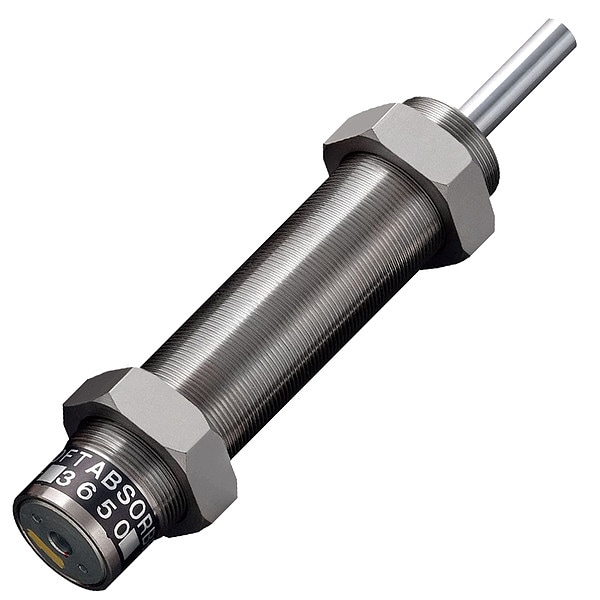

Shock Absorber, 4400 lb., M36x1.5,150mm L
| Item | Shock Absorber |
|---|---|
| Type | Fixed |
| Force | 68.6 N |
| Max. Cycle Rate | 30 per min |
| Material | Steel |
| Rod Thread Size | M36 x 1.5 |
| Compressed Length | Not Applicable |
| Extended Length | 218.5 mm |
| Rod Dia. | 12 mm |
| Adjustable Resistance | No |
| Locking | No |
| Stroke | 50 mm |
| Pin Dia. | 12 mm |
| Includes | Adjustment Knob with Lock Screw, Cap, External Spring, Locating Nuts |
| Ball Diameter | 31 mm |
| Max. Weight | 675 lb |
| Fixed Resistance | Yes |
| Cylinder Dia. | 36 mm |
| Standards | RoHS Compliant |
| Rated Capacity - Maximum | 675 lb |
| Operating Temperature - Maximum | 158 deg F |
| Rod Diameter | 12 mm |
| Force Resistance | Fixed |
| Eyelet Diameter | Not Applicable |
| System of Measurement | Metric |
| Operating Temperature - Minimum | 23 deg F |
| Cycles per Minute - Maximum | 30 |
| Stroke Length | 50 mm |
| Eyelet Thickness | Not Applicable |
| Cylinder Diameter | 36 mm |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
