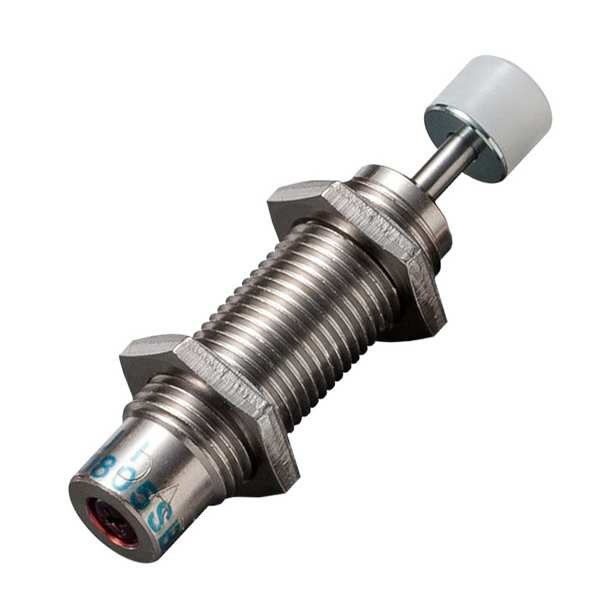

Shock Absorber, 6.6 lb., M8x0.75, 37mm L
| Item | Shock Absorber |
|---|---|
| Type | Fixed |
| Force | 4.9 N |
| Max. Cycle Rate | 45 per min |
| Material | Steel |
| Rod Thread Size | M8 x 0.75 |
| Compressed Length | Not Applicable |
| Extended Length | 37 mm |
| Pin Dia. | 2 mm |
| Rod Dia. | 2 mm |
| Cylinder Dia. | 8 mm |
| Includes | Cap |
| Locking | No |
| Adjustable Resistance | No |
| Stroke | 5 mm |
| Max. Weight | 6.6 lb |
| Ball Diameter | 6 mm |
| Fixed Resistance | Yes |
| Standards | RoHS Compliant |
| Eyelet Thickness | Not Applicable |
| Cycles per Minute - Maximum | 45 |
| Stroke Length | 5 mm |
| Force Resistance | Fixed |
| Rod Diameter | 2 mm |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | 23 deg F |
| Eyelet Diameter | Not Applicable |
| Cylinder Diameter | 8 mm |
| Rated Capacity - Maximum | 6.6 lb |
| System of Measurement | Metric |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
