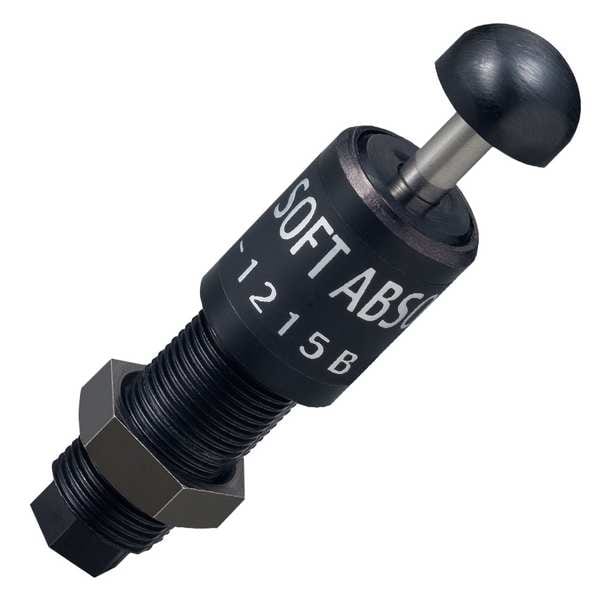

Shock Absorber, 88 lb., M20x1.5, 70mm L
| Item | Shock Absorber |
|---|---|
| Type | Fixed |
| Max. Cycle Rate | 45 per min |
| Force | 11.8 N |
| Material | Steel |
| Rod Thread Size | M20 x 1.5 |
| Compressed Length | Not Applicable |
| Extended Length | 103 mm |
| Ball Diameter | 21 mm |
| Fixed Resistance | Yes |
| Stroke | 15 mm |
| Rod Dia. | 7 mm |
| Cylinder Dia. | 20 mm |
| Locking | No |
| Pin Dia. | 7 mm |
| Adjustable Resistance | No |
| Includes | Cap |
| Max. Weight | 88 lb |
| Standards | RoHS Compliant |
| Eyelet Thickness | Not Applicable |
| Force Resistance | Fixed |
| System of Measurement | Metric |
| Eyelet Diameter | Not Applicable |
| Cylinder Diameter | 25 mm |
| Stroke Length | 15 mm |
| Rated Capacity - Maximum | 88 lb |
| Rod Diameter | 7 mm |
| Cycles per Minute - Maximum | 30 |
| Operating Temperature - Maximum | 122 deg F |
| Operating Temperature - Minimum | 14 deg F |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
