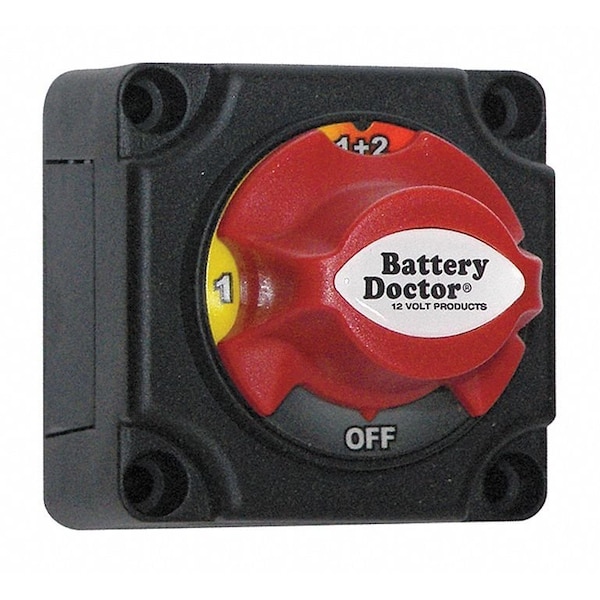

Battery Disconnect Switch, In-Line
| Item | Battery Disconnect Switch |
|---|---|
| Width | 69 mm |
| Standards | ISO 8846 Approved |
| Max. Voltage | 12/24/24V |
| Switch Type | In-Line Rotary |
| Stud Size | 10 mm |
| Length | 3 in |
| Features | Four Mounting Holes, Can be Used with 1 or 2 Batteries, Select Either 'OFF', 'Battery 1', 'Batteries 1+2' or 'Battery 2', Back Plate is Removable, Snaps Off and On, Recessed or Surface Mount, 300A Continuous, 700A/10 sec Crank Rating |
| Depth | 75 mm |
| Polarity | Negative |
| Max. Amps | 300 |
| Connection Material | Copper |
| Package Quantity | 1 |
