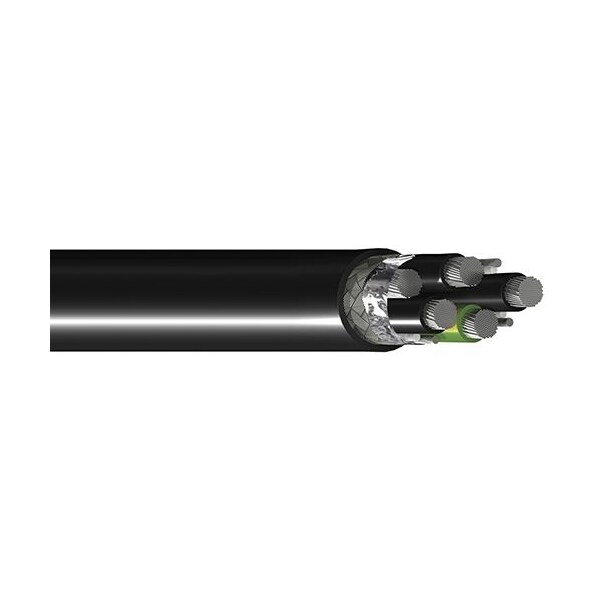

Cable Belden 12-3C + GRND tipo TC STR TNC, con cubierta de XLP/PVC, lámina de aluminio/poliéster y trenzado de 85% de cobre, en presentación de 1000 pies.
| Insulation Material | XLP, XLPO, XLPE |
|---|---|
| Conductor Material | Tinned Copper |
| Color | Black |
| Shielding | Foil + Braid |
| Length | 5,000 ft |
| Material | Tinned or Coated Copper |
| Material@OuterShield1 2 | Tinned Copper |
| Suitability - Sunlight Resistance | Yes |
| UL Flammability | UL1685 UL Loading |
| Conductor Configuration | 3 Conductor |
| EU Directive 2015/863/EU | Yes |
| Stranding@Conductor1 | 65 x 30 |
| IEEE Flammability | 1,202 |
| Other Specification | 1000V UL Flexible Motor Supply Cable |
| EU CE Mark | Yes |
| AWG Size | 12 |
| UL Temp Rating | Wet |
| UL voltage rating | 1,000 V RMS |
| Put-Up Type | Reel |
| Suitability - Oil Resistance | Yes |
| Jacket | PVC |
| NEC Articles | Article 336 |
| Conductor Material and Stranding | Tinned Copper - Stranded |
| Suitability - Indoor | Yes |
| Suitability - Burial | Yes |
| Conductor Count | 3 |
| Material@Insulation01 | XLPE - Cross Linked Polyethylene |
| CSA AWM Specification | 1000 V AWM I/II A/B |
| Suitability - Outdoor | Yes |
| CSA Flammability | FT4 |
| PMSHA Specification | P-07-KA070003-MSHA |
| Screen/Shield | Shielded |
| Temperature Rating | 90 Degrees Centigrade |
| Voltage Range | 1KV |
| Type | Stranded |
| Product Type | Vfd |
| Conductor Size/Gauge | 12 AWG |
| Earth/Ground Wires | Yes |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| Package Quantity | 1 |
