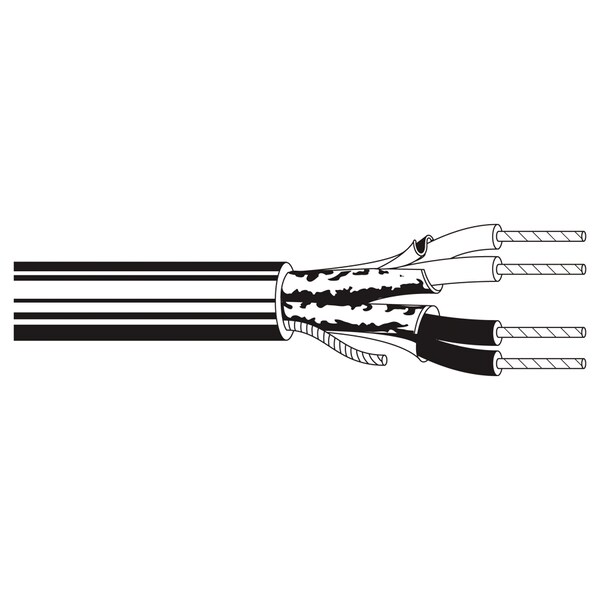

22-2P STR TNC HALAR IND FOIL, SHD FRPVC 75C NEC CMP, ROHS, 1000FT
| Jacket Color | Natural |
|---|---|
| Jacket Material | Low Smoke Polyvinyl Chloride |
| Number of Conductors | 4 |
| Shielding Material | Bi-Laminate (Alum and Poly) |
| NEC Article and Type | CMP |
| Standards | CEC/C(UL) CMP; NFPA 262, UL 910 (Plenum) |
| Shielding | FOIL |
| Fire Rating - Data Cable | Plenum |
| Shielded / Unshielded | Shielded |
| Max. Voltage | 300 V |
| Temp. Rating | 90°C |
| Conductor Size | 22 AWG (AMERICAN WIRE GAUGE) |
| Insulated / Uninsulated | Insulated |
| Wire Size | 22 AWG |
| Color Code | Red & Black, Green & White |
| Wire Material | Tinned Copper |
| Insulation Material | Fluorinated Ethylene Propylene |
| Plenum / Riser Rated | Plenum Rated |
| Indoor / Outdoor | Indoor |
| Number of Conductor Pairs | 2 |
| Stranding | 7 x 30 |
| Nom. Imped. (Ohms) | 36 ohms |
| Voltage Rating | 300 V AC |
| Jacketing Material | Lspvc-Low Smoke Polyvinyl Chloride |
| Nom. O.D. (In.) | 0.153 in |
| Spec Nbr Ul Style | UL LSTED WIRE MISC. |
| Jacket | Flamarrest--Natural |
| Nom. Vel of Prop. | 0.62 |
| Shield Type | Mylar, Foil Shielded - Alum |
| Construction | Indivl/Foil Side & Drain Out |
| Screen/Shield | Yes |
| Jacket Thickness (In.) | 0.017 in |
| Drain Wire Awg | 22 AWG Stranded TC |
| Conductor Type | Stranded Conductor |
| Conductor Count | 2 Pairs |
| NEC Rating | UL LISTED ART 800 PLENUM |
| CSA | FT6 HORIZONTAL FLAME & SMOKE TEST |
| Nom. Capacitance (Pf/Ft.) | 43 |
| Insulation Thickness (In.) | 0.007 |
| Temperature Rating | 80 Degrees Centigrade |
| Package Quantity | 1 |
