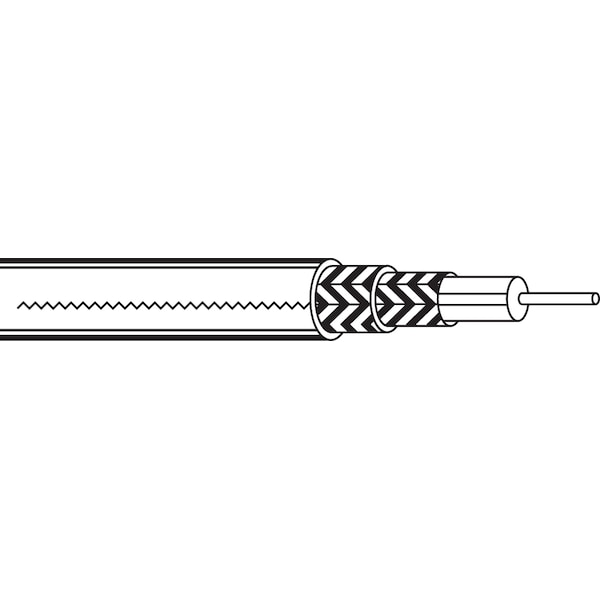

M17/158-00001 19 SOL SCCS TFE, 2-98% SPC BRD SHDS FEP JKT, 1000FT
| Insulation Material | TFE |
|---|---|
| Shielding | Braid(s) |
| Impedance | 50 ohms |
| Color | Brown |
| Length | 1,000 ft |
| UL voltage rating | 150 V RMS |
| Conductor Configuration | 1 Coax / Triax |
| Military Specification | Commercial, non-QPL product (M17/158-00001) |
| UL Temp Rating | 200°C |
| Material@Insulation01 | PTFE - Polytetrafluoroethylene |
| Conductor Count | 1 |
| Conductor Material | Silvered Copper Covered Steel |
| UV Resistance | Yes |
| Suitability - Aerial | Yes - When supported by messenger wire |
| Suitability - Indoor | Yes |
| Jacket | FEP |
| Put-Up Type | Reel |
| AWG Size | 19 |
| Suitability - Outdoor | Yes |
| Material@OuterShield1 2 | Silvered Copper (SC) |
| Environmental Space | Indoor - Plenum |
| Stranding@Conductor1 | Solid |
| UL Flammability | NFPA 262 |
| Plenum | Plenum |
| Jacketing Material | Frpvc-Flame Retardant Polyvinyl Chloride |
| CSA | FT6 HORIZONTAL FLAME & SMOKE TEST |
| Material | Silver Coated Cu Clad Stl |
| Package Quantity | 1 |
