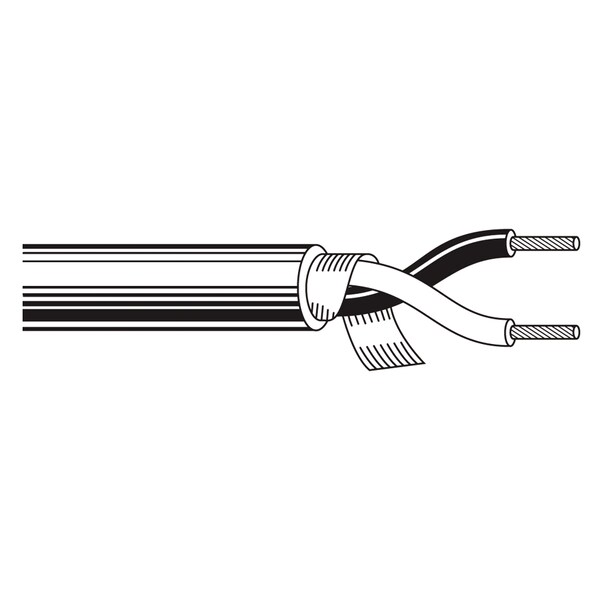

Multi-Conductor Cable, 16 AWG, 2 C, Chrome, PVC, Stranded, 300V AC, Indoor
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 16 AWG |
| Number of Conductors | 2 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Chrome |
| Length | 1,000 ft |
| Location | Indoor |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CMG; UL1685 FT4 Loading |
| Insulated / Uninsulated | Insulated |
| Outside Dia. | 0.28 in |
| NEC Article and Type | CMG |
| Stranding | 19 x 29 |
| Shielded | Shielded |
| Max. Voltage | 300 V |
| Insulation Material | PVC |
| Temp. Rating | 60°C |
| Jacket Thickness (In.) | 0.03 in |
| Screen/Shield | Yes |
| CSA | FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS |
| Plenum | General Purpose |
| Impedance | 37 ohms (Nominal Impedance) |
| Insulation Thickness (In.) | 0.023 |
| Construction | Overall Shield & Drain |
| Nom. Capacitance (Pf/Ft.) | 57 |
| NEC Rating | NEC CMG |
| Spec Nbr Ul Style | UL LSTED WIRE MISC. |
| Package Quantity | 1 |
