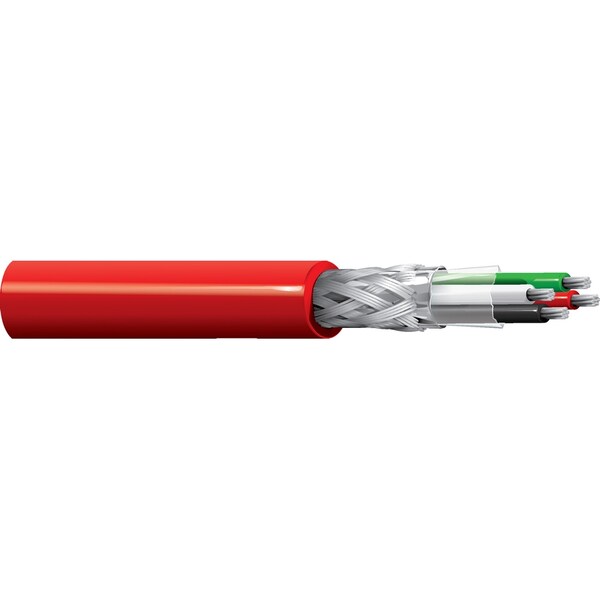

Multi-Conductor Cable, 16 AWG, 3 C, Red, FEP, Stranded, 300V AC
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 16 AWG |
| Number of Conductors | 3 |
| Conductor Design | Stranded |
| Jacket Material | FEP |
| Jacket Color | Red |
| Length | 1,000 ft |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CMP; NFPA 262 (UL 910) |
| Shielded | Shielded |
| Shielding Material | Tinned Copper |
| Temp. Rating | 150°C |
| Stranding | 19 x 29 |
| Outside Dia. | 0.206 in |
| Shielding | Foil, Braid |
| Insulated / Uninsulated | Insulated |
| Max. Voltage | 300 V |
| Insulation Material | Fluorinated Ethylene Propylene |
| NEC Article and Type | CMP |
| Fire Rating - Data Cable | Plenum |
| Insulation Thickness (In.) | 0.007 |
| Screen/Shield | Yes |
| Spec Nbr Ul Style | UL LSTED WIRE MISC. |
| Construction | Overall Shield & Drain |
| Nom. Capacitance (Pf/Ft.) | 35 |
| CSA | FT6 HORIZONTAL FLAME & SMOKE TEST |
| Jacket Thickness (In.) | 0.014 in |
| Package Quantity | 1 |
