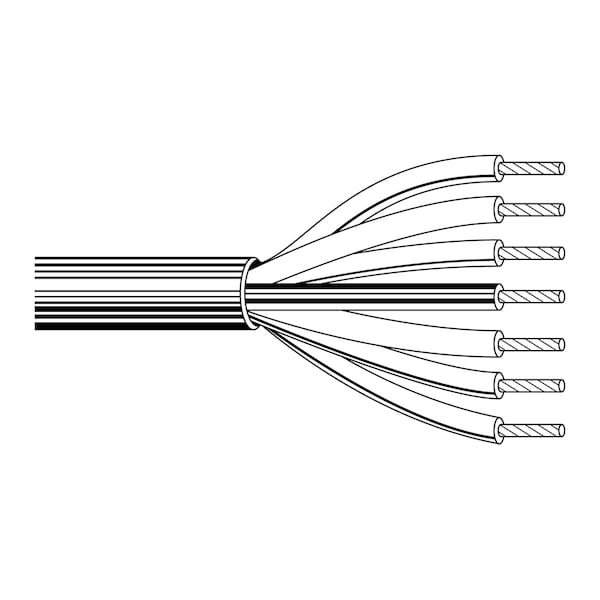

Multi-Conductor Cable, 18 AWG, 9 C, Chrome, PVC, Stranded, 300V AC
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 18 AWG |
| Number of Conductors | 9 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Chrome |
| Length | 5,000 ft |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CMG; UL AWM 2598; UL 1685 FT4 Loading |
| Outside Dia. | 0.364 in |
| Insulation Material | PVC |
| Insulated / Uninsulated | Insulated |
| NEC Article and Type | CMG |
| Stranding | 19 x 30 |
| Max. Voltage | 300 V |
| Shielded | Unshielded |
| Temp. Rating | 60°C |
| NEC Rating | NEC CMG |
| Insulation Thickness (In.) | 0.017 |
| Screen/Shield | No |
| Plenum | General Purpose |
| Spec Nbr Ul Style | UL STYLE, 2598 |
| CSA | FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS |
| Jacket Thickness (In.) | 0.037 in |
| Package Quantity | 1 |
