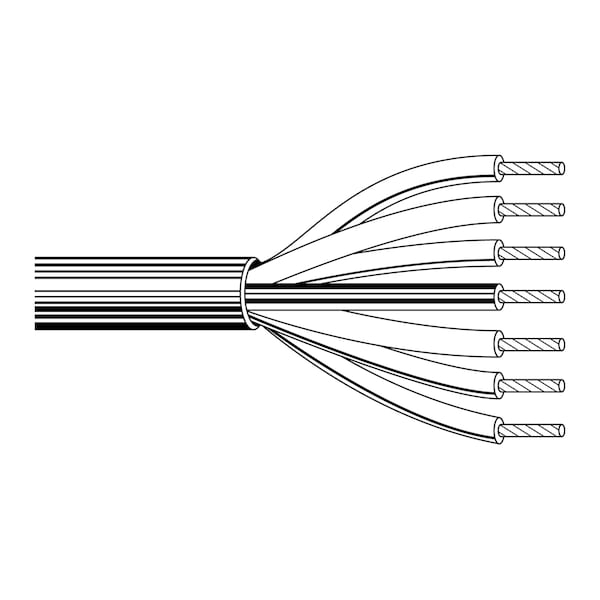

Multi-Conductor Cable, 20 AWG, 15 C, Chrome, PVC, Stranded, 300V AC, Indoor
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 20 AWG |
| Number of Conductors | 15 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Chrome |
| Location | Indoor |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CMG; UL AWM 2464; UL 1685 FT4 Loading |
| Stranding | 7 x 28 |
| Max. Voltage | 300 V |
| Outside Dia. | 0.389 in |
| NEC Article and Type | CMG |
| Shielded | Unshielded |
| Insulated / Uninsulated | Insulated |
| Insulation Material | PVC |
| Temp. Rating | 80°C |
| Insulation Thickness (In.) | 0.013 |
| NEC Rating | UL LISTED ART 800 |
| Screen/Shield | No |
| Jacket Thickness (In.) | 0.04 in |
| CSA | FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS |
| Plenum | General Purpose |
| Spec Nbr Ul Style | UL STYLE, 2464 |
| Package Quantity | 1 |
