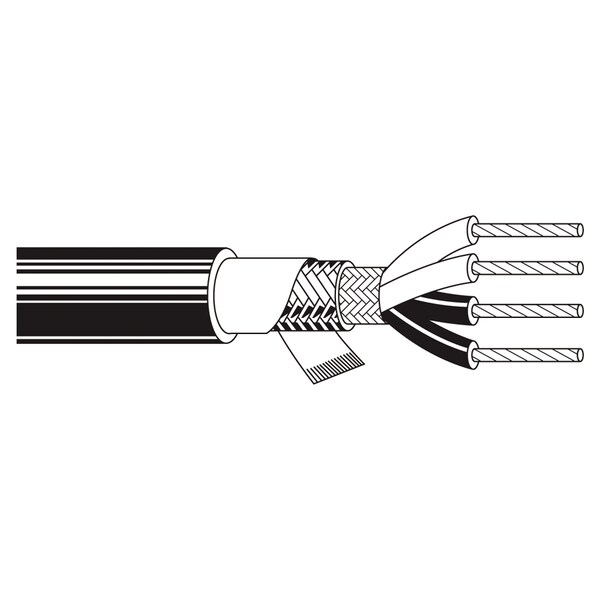

Multi-Conductor Cable, 20 AWG, 4 C, Black, EPDM Rubber, Stranded, 600V AC, Indoor
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 20 AWG |
| Number of Conductors | 4 |
| Conductor Design | Stranded |
| Jacket Material | EPDM Rubber |
| Jacket Color | Black |
| Length | 1,000 ft |
| Location | Indoor |
| Voltage | 600 V |
| Conductor Material | Copper |
| Temp. Rating | 90°C |
| Shielded | Shielded |
| Insulation Material | EPDM Rubber |
| Max. Voltage | 600 V |
| Shielding Material | Tinned Copper |
| Insulated / Uninsulated | Insulated |
| Stranding | 26 x 34 |
| Construction | Overall Braid Shield |
| Impedance | 52 ohms (Nominal Impedance) |
| Screen/Shield | Yes |
| Plenum | General Purpose |
| Spec Nbr Ul Style | UL LSTED WIRE MISC. |
| Package Quantity | 1 |
