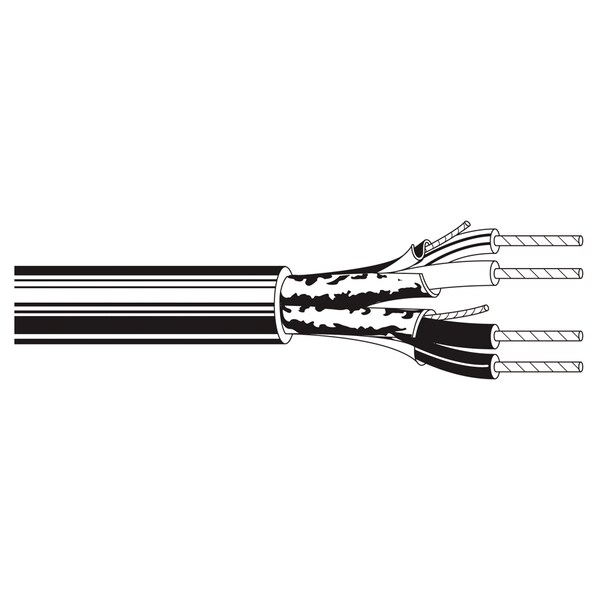

Multi-conductor Cable, 20 AWG, 4 C, Chrome, PVC, Stranded, 300V AC
| Item | Multi-conductor Cable |
|---|---|
| Wire Size | 20 AWG |
| Number of Conductors | 4 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Chrome |
| Length | 1,000 ft |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CMG; UL AWM 2464; UL 1685 FT4 Loading |
| Shielding Material | Bi-Laminate |
| Shielded | Shielded |
| Shielding | Foil |
| Temp. Rating | 80°C |
| Max. Voltage | 300 V |
| Outside Dia. | 0.3 in |
| Stranding | 7 x 28 |
| NEC Article and Type | CMG |
| Insulated / Uninsulated | Insulated |
| Insulation Material | Semi-Rigid Polyvinyl Chloride |
| Screen/Shield | Yes |
| Construction | Indivl/Foil Side & Drain Out |
| Spec Nbr Ul Style | UL STYLE, 2464 |
| CSA | FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS |
| Nom. Capacitance (Pf/Ft.) | 55 |
| Plenum | General Purpose |
| NEC Rating | NEC CMG |
| Package Quantity | 1 |
