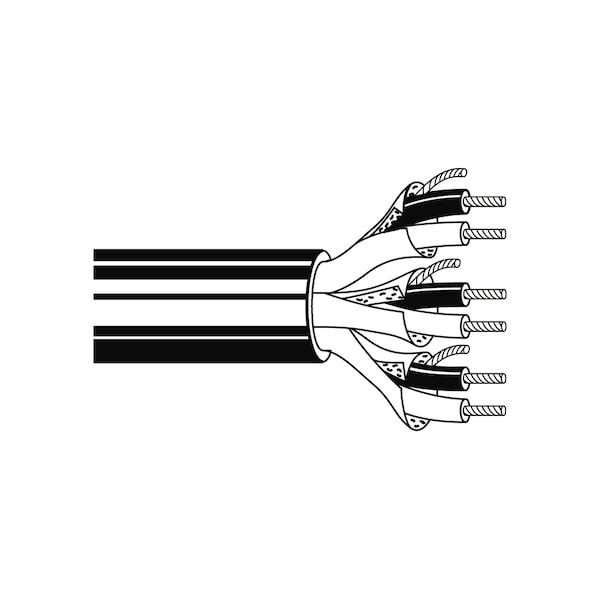

Multi-Conductor Cable, 20 AWG, 6 C, Black, PVC, Stranded, 350V AC
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 20 AWG |
| Number of Conductors | 6 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Black |
| Voltage | 350 V |
| Conductor Material | Copper |
| Shielding | Foil |
| Insulated / Uninsulated | Insulated |
| Shielded | Shielded |
| Shielding Material | Bi-Laminate |
| Temp. Rating | 80°C |
| Insulation Material | Polypropylene |
| Stranding | 10 x 30 |
| Outside Dia. | 0.34 in |
| Plenum | General Purpose |
| Nom. Imped. (Ohms) | 50 ohms |
| Screen/Shield | Yes |
| Nom. Capacitance (Pf/Ft.) | 30 |
| Nom. Vel of Prop. | 0.66 |
| Construction | Indivl/Foil Side & Drain Out |
| Spec Nbr Ul Style | UL LSTED WIRE MISC. |
| Package Quantity | 1 |
