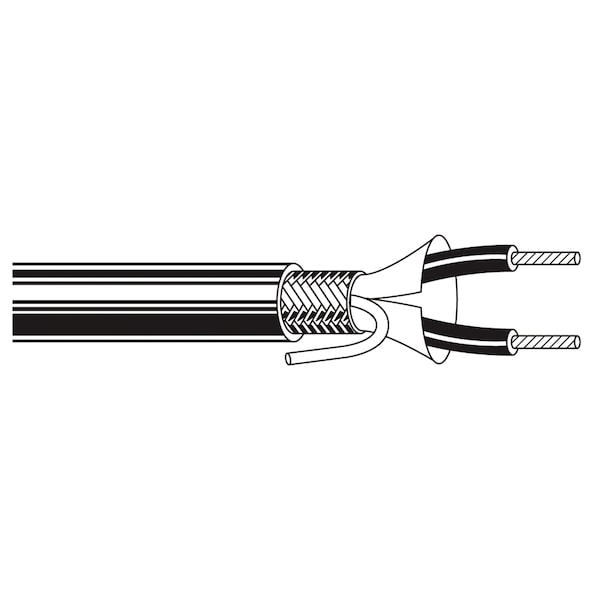

Multi-Conductor Cable, 22 AWG, 2 C, Black, PVC, Stranded, 300V AC, Indoor
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 22 AWG |
| Number of Conductors | 2 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Black |
| Length | 1,000 ft |
| Location | Indoor |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CMG; UL AWM 2095; UL 1685 FT4 Loading |
| Outside Dia. | 0.194 in |
| Insulation Material | PVC |
| Shielded | Shielded |
| Temp. Rating | 80°C |
| Max. Voltage | 300 V |
| Stranding | 7 x 30 |
| Shielding | Braid |
| Insulated / Uninsulated | Insulated |
| NEC Article and Type | CMG |
| Plenum | General Purpose |
| Jacket Thickness (In.) | 0.025 in |
| Screen/Shield | Yes |
| Insulation Thickness (In.) | 0.015 |
| NEC Rating | UL LISTED ART 800 |
| Impedance | 45 ohms (Nominal Impedance) |
| Construction | Overall Shield & Drain |
| Spec Nbr Ul Style | UL STYLE, 2095 |
| Nom. Capacitance (Pf/Ft.) | 49 |
| Package Quantity | 1 |
