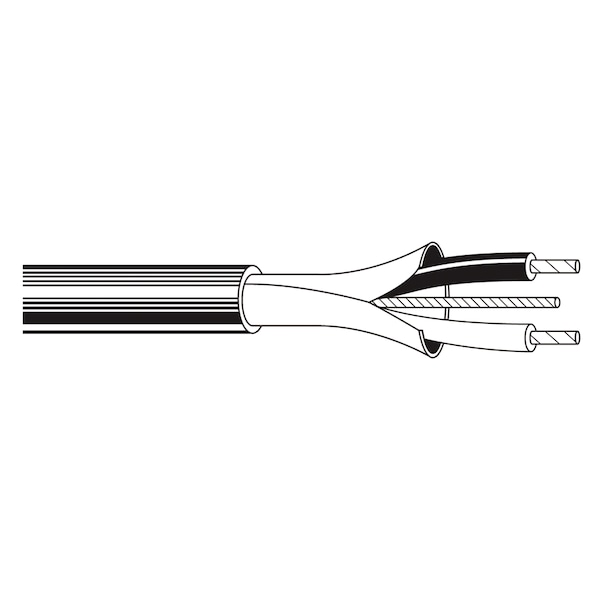

Multi-Conductor Cable, 22 AWG, 2 C, Black, PVC, Stranded, 300V AC, Indoor
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 22 AWG |
| Number of Conductors | 2 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Black |
| Length | 5,000 ft |
| Location | Indoor |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CMR; UL 1666 Riser |
| NEC Article and Type | CMR |
| Insulated / Uninsulated | Insulated |
| Shielded | Shielded |
| Stranding | 7 x 30 |
| Fire Rating - Data Cable | Riser |
| Temp. Rating | 60°C |
| Max. Voltage | 300 V |
| Outside Dia. | 0.135 in |
| Insulation Material | Polypropylene |
| Nom. Capacitance (Pf/Ft.) | 35 |
| Construction | Overall Shield & Drain |
| CSA | FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS |
| NEC Rating | UL LISTED ART 800 |
| Jacket Thickness (In.) | 0.02 in |
| Insulation Thickness (In.) | 0.008 |
| Screen/Shield | Yes |
| Plenum | General Purpose |
| Impedance | 45 ohms (Nominal Impedance) |
| Spec Nbr Ul Style | UL LSTED WIRE MISC. |
| Package Quantity | 1 |
