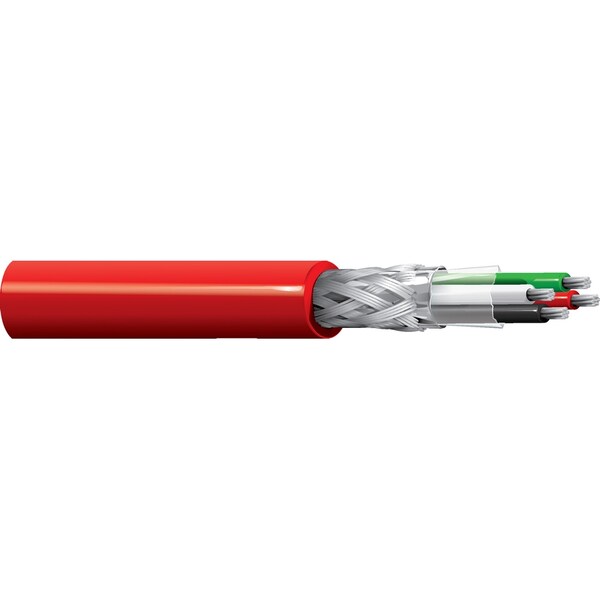

Multi-Conductor Cable, 22 AWG, 3 C, Red, FEP, Stranded, 300V AC, Indoor
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 22 AWG |
| Number of Conductors | 3 |
| Conductor Design | Stranded |
| Jacket Material | FEP |
| Jacket Color | Red |
| Length | 1,000 ft |
| Location | Indoor |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CMP; NFPA 262, UL 910 (Plenum) |
| Fire Rating - Data Cable | Plenum |
| Insulation Material | Fluorinated Ethylene Propylene |
| Temp. Rating | 150°C |
| Insulated / Uninsulated | Insulated |
| Shielding Material | Tinned Copper |
| NEC Article and Type | CMP |
| Stranding | 7 x 30 |
| Shielding | Foil, Braid |
| Shielded | Shielded |
| Outside Dia. | 0.148 in |
| Max. Voltage | 300 V |
| Screen/Shield | Yes |
| Spec Nbr Ul Style | UL LSTED WIRE MISC. |
| Construction | Overall Shield & Drain |
| Insulation Thickness (In.) | 0.006 |
| CSA | FT6 HORIZONTAL FLAME & SMOKE TEST |
| Nom. Capacitance (Pf/Ft.) | 23 |
| Jacket Thickness (In.) | 0.014 in |
| Package Quantity | 1 |
