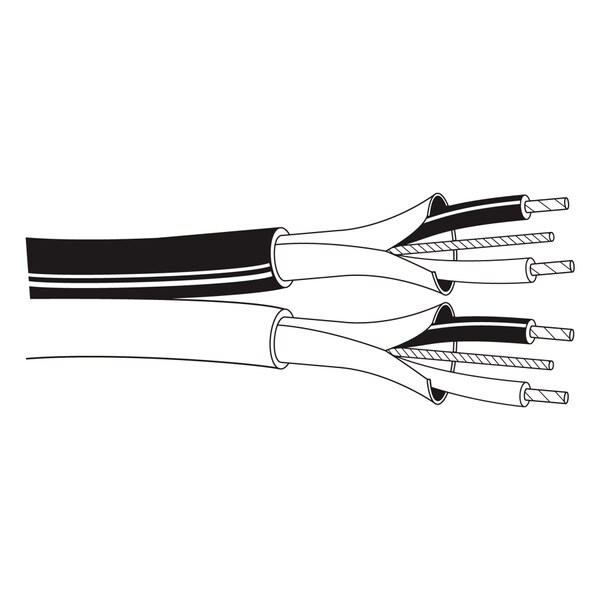

Multi-Conductor Cable, 22 AWG, 4 C, Black, Red, PVC, Stranded, 300V AC, Indoor
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 22 AWG |
| Number of Conductors | 4 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Black, Red |
| Length | 1,000 ft |
| Location | Indoor |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CMR; UL 1666 Riser |
| Max. Voltage | 300 V |
| Temp. Rating | 105°C |
| Stranding | 7 x 30 |
| Insulation Material | Polypropylene |
| Shielded | Shielded |
| Fire Rating - Data Cable | Riser |
| Insulated / Uninsulated | Insulated |
| NEC Article and Type | CMR |
| Impedance | 45 ohms (Nominal Impedance) |
| Screen/Shield | Yes |
| Spec Nbr Ul Style | UL LSTED WIRE MISC. |
| Construction | Overall & Individual Shields W/Drain |
| Plenum | General Purpose |
| CSA | FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS |
| Package Quantity | 1 |
