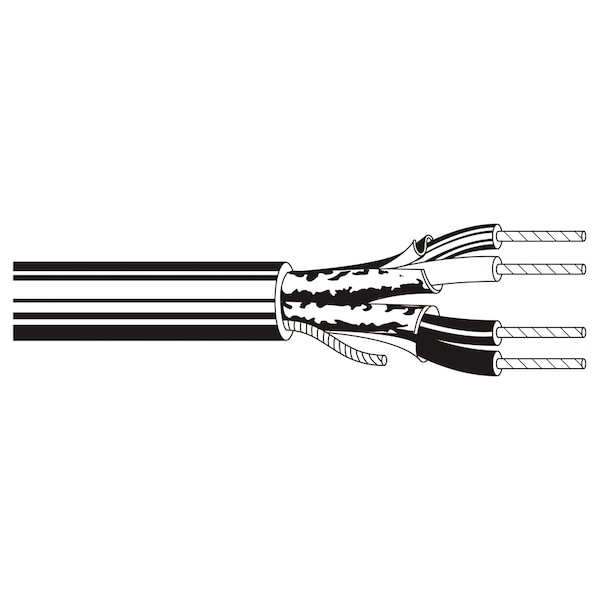

Multi-Conductor Cable, 22 AWG, 4 C, Chrome, PVC, Stranded, 300V AC
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 22 AWG |
| Number of Conductors | 4 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Chrome |
| Length | 1,000 ft |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CM; UL 1685 FT4 Loading |
| Shielded | Shielded |
| Insulation Material | Polypropylene |
| Features | Stranded |
| NEC Article and Type | CM |
| Insulated / Uninsulated | Insulated |
| Temp. Rating | 60°C |
| Max. Voltage | 300 V |
| Shielding Material | Bi-Laminate |
| Stranding | 7 x 30 |
| Certifications & Standards | UL1685, NEC/(UL), CEC/C(UL), EU CE, EU Directive 2000/53/EC (ELV), EU Directive 2002/95/EC, EU Directive 2002/96/EC, EU Directive 2003/11/EC (BFR), CA Prop 65 (CJ for Wire & Cable) |
| Device Supported | Network Device |
| Connector Type on Second End | Bare Wire |
| Connector Type on First End | Bare Wire |
| Plenum | General Purpose |
| NEC Rating | UL LISTED ART 800 |
| Spec Nbr Ul Style | UL LSTED WIRE MISC. |
| Construction | Indivl/Foil Side & Drain Out |
| Impedance | 52 ohms (Nominal Impedance) |
| Package Quantity | 1 |
