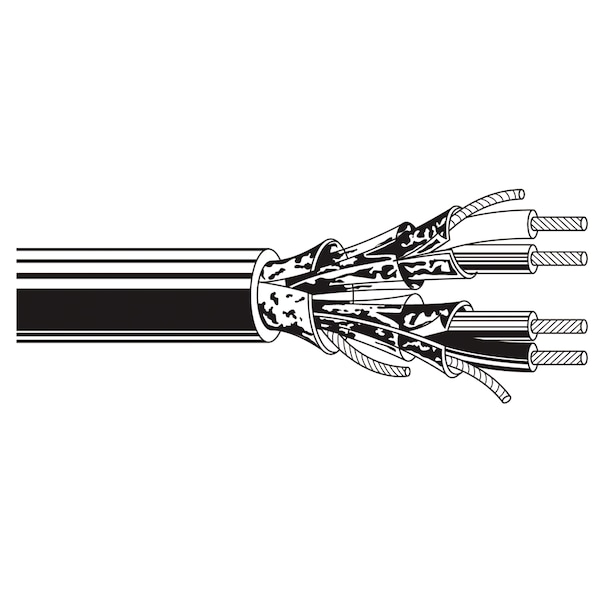

Multi-Conductor Cable, 22 AWG, 4 C, Chrome, PVC, Stranded, 300V AC, Indoor
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 22 AWG |
| Number of Conductors | 4 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Chrome |
| Length | 1,000 ft |
| Location | Indoor |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CM; UL AWM 2717; UL1685 UL Loading |
| Stranding | 7 x 30 |
| Max. Voltage | 300 V |
| Outside Dia. | 0.215 in |
| NEC Article and Type | CM |
| Temp. Rating | 80°C |
| Insulation Material | Polypropylene |
| Insulated / Uninsulated | Insulated |
| Shielded | Shielded |
| Shielding Material | Bi-Laminate |
| Plenum | General Purpose |
| Insulation Thickness (In.) | 0.05 |
| Screen/Shield | Yes |
| Nom. Capacitance (Pf/Ft.) | 35 |
| Impedance | 50 ohms (Nominal Impedance) |
| Spec Nbr Ul Style | UL STYLE, 2717 |
| Jacket Thickness (In.) | 0.028 in |
| Construction | Indivl/Foil Side & Drain Out |
| Package Quantity | 1 |
