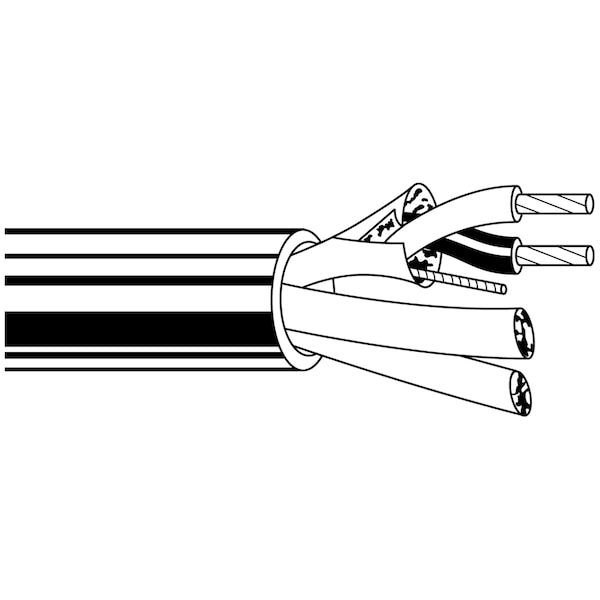

Multi-Conductor Cable, 22 AWG, 6 C, Red, FEP, Stranded, 300V
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 22 AWG |
| Number of Conductors | 6 |
| Conductor Design | Stranded |
| Jacket Material | FEP |
| Jacket Color | Red |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CMP; NFPA 262 (UL910) |
| Shielding | Foil |
| Stranding | 7 x 30 |
| Fire Rating - Data Cable | Plenum |
| Temp. Rating | 150°C |
| Shielding Material | Bi-Laminate |
| Max. Voltage | 300 V |
| Insulation Material | Fluorinated Ethylene Propylene |
| NEC Article and Type | CMP |
| Insulated / Uninsulated | Insulated |
| Shielded | Shielded |
| Outside Dia. | 0.234 in |
| Nom. Vel of Prop. | 0.69 |
| Construction | Indivl/Foil Side & Drain Out |
| CSA | FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS |
| Nom. Capacitance (Pf/Ft.) | 31 |
| Screen/Shield | Yes |
| Jacket Thickness (In.) | 0.014 in |
| Insulation Thickness (In.) | 0.007 |
| Nom. Imped. (Ohms) | 50 ohms |
| Package Quantity | 1 |
