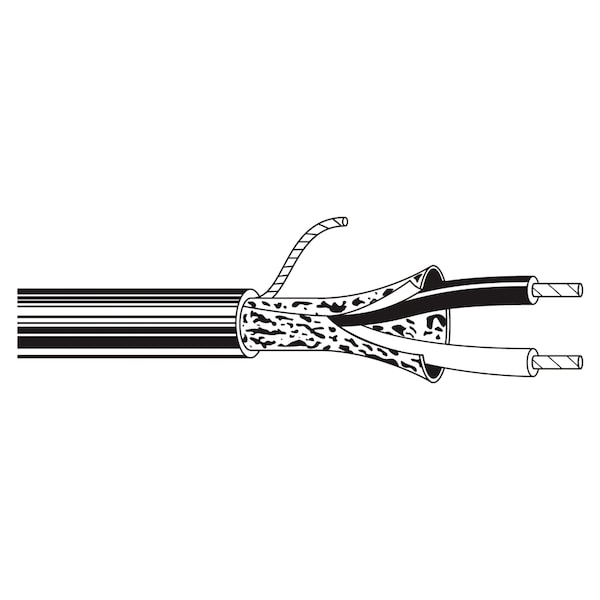

Multi-Conductor Cable, 24 AWG, 10 C, Red, FEP, Stranded, 300V AC
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 24 AWG |
| Number of Conductors | 10 |
| Conductor Design | Stranded |
| Jacket Material | FEP |
| Jacket Color | Red |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CMP; NFPA 262 (UL910) |
| Max. Voltage | 300 V |
| Insulation Material | Fluorinated Ethylene Propylene |
| NEC Article and Type | CMP |
| Outside Dia. | 0.197 in |
| Stranding | 7 x 32 |
| Shielded | Shielded |
| Fire Rating - Data Cable | Plenum |
| Shielding | Foil, Copper Tape |
| Insulated / Uninsulated | Insulated |
| Temp. Rating | 150°C |
| Insulation Thickness (In.) | 0.006 |
| Spec Nbr Ul Style | UL LSTED WIRE MISC. |
| Screen/Shield | Yes |
| Jacket Thickness (In.) | 0.014 in |
| Nom. Capacitance (Pf/Ft.) | 21 |
| CSA | FT6 HORIZONTAL FLAME & SMOKE TEST |
| Construction | Overall Shield & Drain |
| Package Quantity | 1 |
