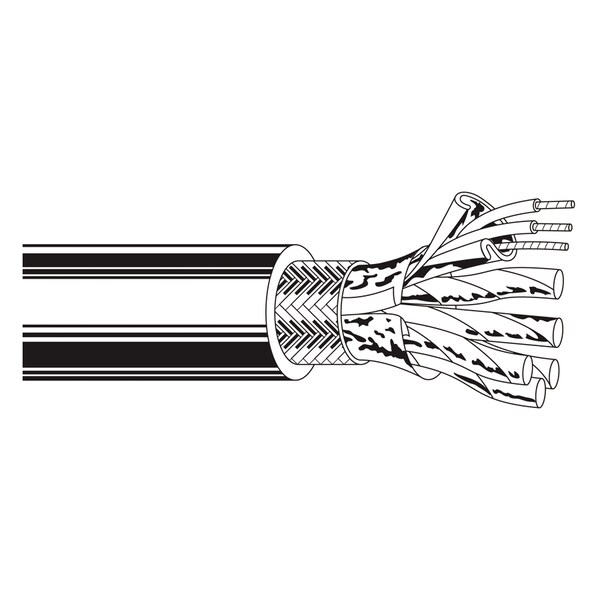

Multi-conductor Cable, 24 AWG, 16 C, Chrome, PVC, Stranded, 300V AC, Indoor
| Item | Multi-conductor Cable |
|---|---|
| Wire Size | 24 AWG |
| Number of Conductors | 16 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Chrome |
| Length | 1,000 ft |
| Location | Indoor |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CM; UL AWM 2493; UL 1685 FT4 Loading |
| Max. Voltage | 300 V |
| Insulated / Uninsulated | Insulated |
| Shielding Material | Inner Shield: Bi-Laminate, Outer Shield: Tinned Copper |
| Insulation Material | Polyethylene |
| Shielding | Foil, Braid |
| Outside Dia. | 0.479 in |
| Temp. Rating | 60°C |
| NEC Article and Type | CM |
| Stranding | 7 x 32 |
| Shielded | Shielded |
| NEC Rating | UL LISTED ART 800 |
| Screen/Shield | Yes |
| Spec Nbr Ul Style | UL STYLE, 2493 |
| Nom. Imped. (Ohms) | 100 ohms |
| Plenum | General Purpose |
| Nom. Capacitance (Pf/Ft.) | 12.5 |
| Nom. Vel of Prop. | 0.78 |
| Construction | Special Construction |
| Package Quantity | 1 |
