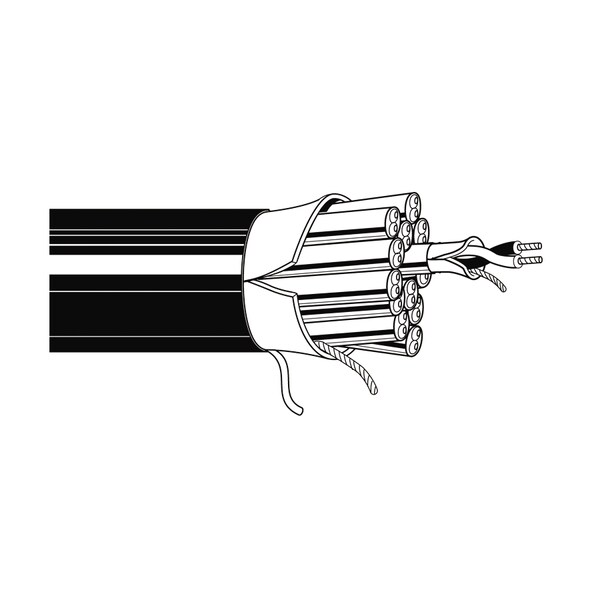

Multi-Conductor Cable, 24 AWG, 16 C, Matte Black, PVC, Stranded, 300V AC, Indoor
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 24 AWG |
| Number of Conductors | 16 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Matte Black |
| Length | 1,000 ft |
| Location | Indoor |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CM; UL1581 Vertical Tray, UL1685 FT4 Loading |
| Shielded | Shielded |
| Outside Dia. | 0.452 in |
| Max. Voltage | 300 V |
| Insulation Material | Polypropylene |
| Stranding | 7 x 32 |
| Temp. Rating | 60°C |
| NEC Article and Type | CM |
| Shielding Material | Bi-Laminate |
| Insulated / Uninsulated | Insulated |
| Impedance | 50 ohms (Nominal Impedance) |
| Plenum | General Purpose |
| Spec Nbr Ul Style | UL LSTED WIRE MISC. |
| Construction | Braid/Mylar/Braid Overall Dbl Braid |
| NEC Rating | UL LISTED ART 800 |
| Screen/Shield | Yes |
| Package Quantity | 1 |
