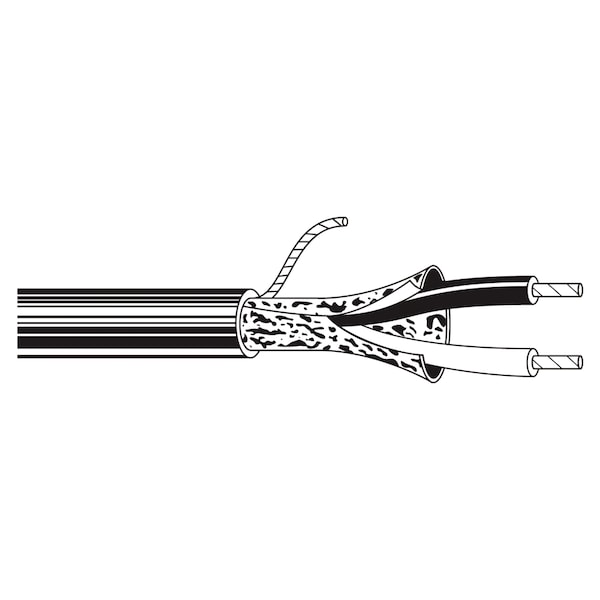

Multi-Conductor Cable, 24 AWG, 16 C, Red, FEP, Stranded, 300V AC
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 24 AWG |
| Number of Conductors | 16 |
| Conductor Design | Stranded |
| Jacket Material | FEP |
| Jacket Color | Red |
| Voltage | 300 V |
| Conductor Material | Copper |
| Outside Dia. | 0.192 in |
| Insulation Material | Fep-Fluorinated Ethylene Propylene |
| Shielded | Shielded |
| Temp. Rating | 200°C |
| Fire Rating - Data Cable | Plenum |
| Insulation Thickness (In.) | 0.006 |
| Screen/Shield | Yes |
| Jacket Thickness (In.) | 0.014 in |
| CSA | FT6 HORIZONTAL FLAME & SMOKE TEST |
| Nom. Capacitance (Pf/Ft.) | 21 |
| No. of Pairs | 4 |
| Construction | Overall Shield & Drain |
| Spec Nbr Ul Style | UL LSTED WIRE MISC. |
| Package Quantity | 1 |
