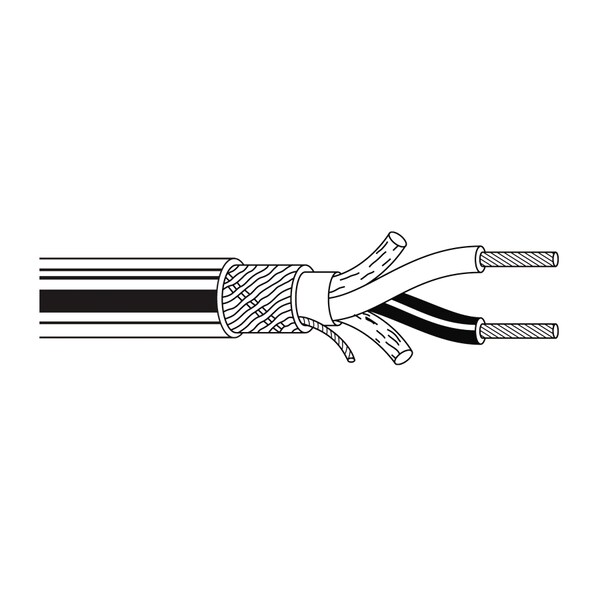

Multi-Conductor Cable, 24 AWG, 2 C, Black, PVC, Stranded, 300V AC, Indoor
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 24 AWG |
| Number of Conductors | 2 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Black |
| Length | 1,000 ft |
| Location | Indoor |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | UL 1666 Riser |
| Fire Rating - Data Cable | Riser |
| Temp. Rating | 60°C |
| Insulated / Uninsulated | Insulated |
| Outside Dia. | 0.211 in |
| Shielded | Shielded |
| NEC Article and Type | CL2R |
| Insulation Material | Polyethylene |
| Stranding | 42 x 40 |
| Spec Nbr Ul Style | UL LSTED WIRE MISC. |
| Impedance | 110 ohms (Nominal Impedance) |
| Nom. Capacitance (Pf/Ft.) | 13 |
| Screen/Shield | Yes |
| Plenum | General Purpose |
| Construction | Overall Braid Shield |
| Package Quantity | 1 |
