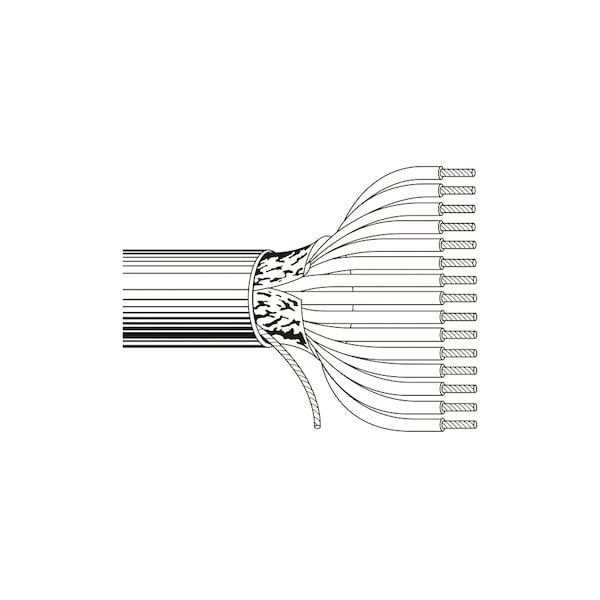

Multi-conductor Cable, 24 AWG, 20 C, Chrome, PVC, Stranded, 300V AC, Indoor
| Item | Multi-conductor Cable |
|---|---|
| Wire Size | 24 AWG |
| Number of Conductors | 20 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Chrome |
| Length | 1,000 ft |
| Location | Indoor |
| Voltage | 300 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CMG; UL AWM 2464; UL 1685 FT4 Loading |
| Insulation Material | Semi-Rigid Polyvinyl Chloride |
| Temp. Rating | 80°C |
| Shielding | Foil, Copper Tape |
| Shielded | Shielded |
| Max. Voltage | 300 V |
| Insulated / Uninsulated | Insulated |
| Outside Dia. | 0.314 in |
| NEC Article and Type | CMG |
| Stranding | 7 x 32 |
| Jacket Thickness (In.) | 0.032 in |
| Nom. Capacitance (Pf/Ft.) | 30 |
| Insulation Thickness (In.) | 0.01 |
| Shield Coverage | 1 |
| Screen/Shield | Yes |
| CSA | FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS |
| Construction | Overall Shield & Drain |
| Spec Nbr Ul Style | UL STYLE, 2464 |
| NEC Rating | NEC CMG |
| Plenum | General Purpose |
| Package Quantity | 1 |
