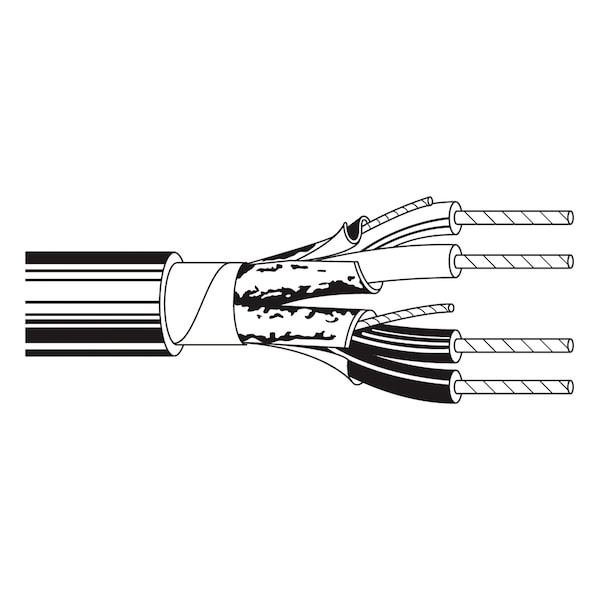

Multi-conductor Cable, 24 AWG, 4 C, Chrome, PVC, Stranded, 300V, 30V
| Item | Multi-conductor Cable |
|---|---|
| Wire Size | 24 AWG |
| Number of Conductors | 4 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Chrome |
| Length | 1,000 ft |
| Voltage | 300 V, 30 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CM; UL AWM 2919; UL 1685 FT4 Loading |
| Temp. Rating | 60°C |
| Max. Voltage | 300 V, 30 V |
| Shielded | Shielded |
| NEC Article and Type | CM |
| Insulation Material | Polyethylene |
| Stranding | 7 x 32 |
| Shielding Material | Bi-Laminate |
| Shielding | Foil |
| Insulated / Uninsulated | Insulated |
| Construction | Indivl/Foil Side & Drain In |
| NEC Rating | UL LISTED ART 800 |
| Impedance | 100 ohms (Nominal Impedance) |
| Screen/Shield | Yes |
| Plenum | General Purpose |
| Package Quantity | 1 |
