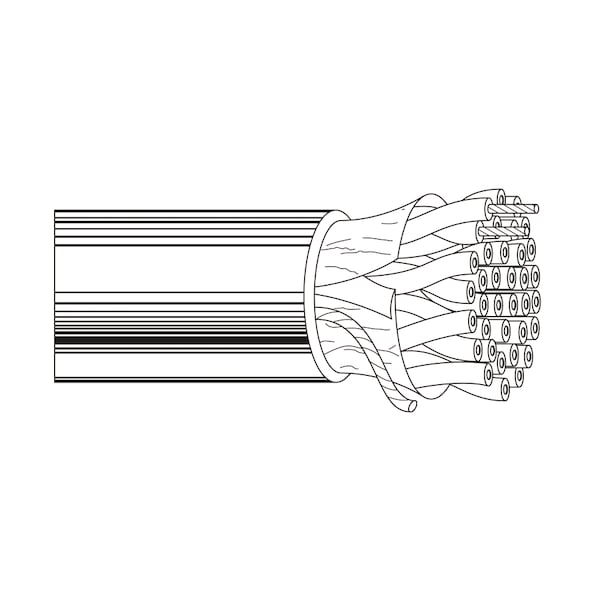

Multi-conductor Cable, 24 AWG, 6 C, Chrome, PVC, Stranded, 30V AC, Indoor
| Item | Multi-conductor Cable |
|---|---|
| Wire Size | 24 AWG |
| Number of Conductors | 6 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Chrome |
| Location | Indoor |
| Voltage | 30 V |
| Conductor Material | Copper |
| Standards | CEC/C(UL) CM; UL AWM 2919; UL 1685 FT4 Loading |
| NEC Article and Type | CM |
| Max. Voltage | 300 V, 30 V |
| Insulation Material | Polyethylene |
| Shielding | Foil, Copper Tape |
| Shielded | Shielded |
| Outside Dia. | 0.261 in |
| Stranding | 7 x 32 |
| Insulated / Uninsulated | Insulated |
| Temp. Rating | 80°C |
| Nom. Imped. (Ohms) | 100 ohms |
| Screen/Shield | Yes |
| Nom. Vel of Prop. | 0.78 |
| Construction | Overall Shield & Drain |
| Nom. Capacitance (Pf/Ft.) | 13 |
| CSA | FT1 VERTICAL FLAME TEST |
| Plenum | General Purpose |
| Spec Nbr Ul Style | UL STYLE, 2919 |
| NEC Rating | UL LISTED ART 800 |
| Package Quantity | 1 |
