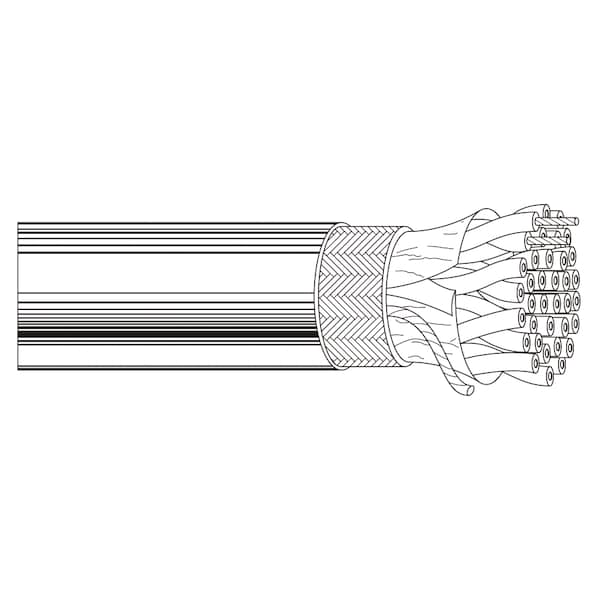

Multi-Conductor Cable, 28 AWG, 6 C, Chrome, PVC, Stranded, 30V AC
| Item | Multi-Conductor Cable |
|---|---|
| Wire Size | 28 AWG |
| Number of Conductors | 6 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Chrome |
| Length | 1,000 ft |
| Voltage | 30 V |
| Conductor Material | Copper |
| Standards | UL AWM 2960; UL 1685 FT4 Loading |
| Shielding Material | Tinned Copper |
| Shielded | Shielded |
| NEC Article and Type | CL2 |
| Temp. Rating | 60°C |
| Max. Voltage | 30 V |
| Insulated / Uninsulated | Insulated |
| Stranding | 7 x 36 |
| Shielding | Foil, Braid |
| Insulation Material | Polypropylene |
| Outside Dia. | 0.222 in |
| Screen/Shield | Yes |
| Nom. Vel of Prop. | 0.66 |
| NEC Rating | UL LISTED ART 725 CLASS 2 |
| Construction | Overall Shield & Drain |
| Nom. Imped. (Ohms) | 100 ohms |
| Nom. Capacitance (Pf/Ft.) | 15.5 |
| Plenum | General Purpose |
| Spec Nbr Ul Style | UL STYLE, 2960 |
| Package Quantity | 1 |
