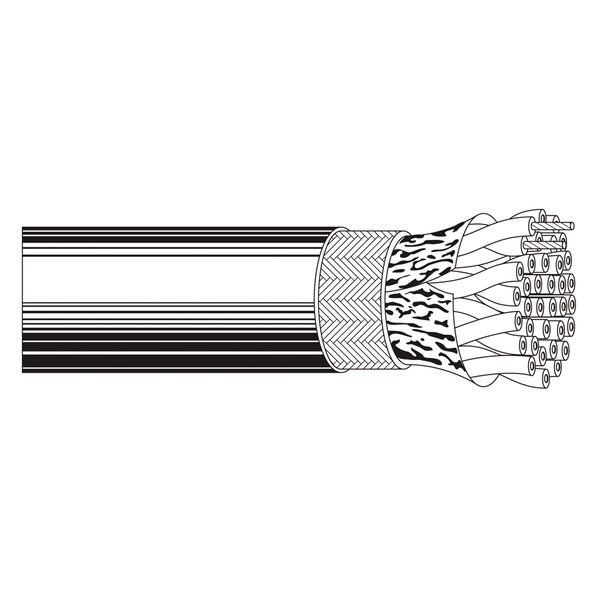

Cable de múltiples conductores, ideal para aplicaciones en interiores con un calibre de 22 AWG, 36 conductores y recubrimiento de PVC en color gris. Con una clasificación de 300V AC y 1000 pies de longitud.
| Item | Multi-Conductor Cable |
|---|---|
| Trade Designation | TNC |
| Wire Size | 22 AWG |
| Number of Conductors | 36 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Gray |
| Length | 1,000 ft |
| Location | Indoor |
| Voltage | 300V AC |
| Conductor Material | Copper |
| Standards | UL 2464 |
| Temp. Rating | 80°C |
| Insulation Material | Srpvc-Semi-Rigid Polyvinyl Chloride |
| Shielded | Shielded |
| Outside Dia. | 0.54 in |
| Nom. Vel of Prop. | 0.6 |
| Plenum | General Purpose |
| No. of Pairs | 18 |
| Screen/Shield | Yes |
| Nom. Imped. (Ohms) | 70 ohms |
| NEC Rating | NEC CMG |
| Construction | Overall Foil & Braid |
| CSA | FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS |
| Nom. Capacitance (Pf/Ft.) | 35 |
| Package Quantity | 1 |
