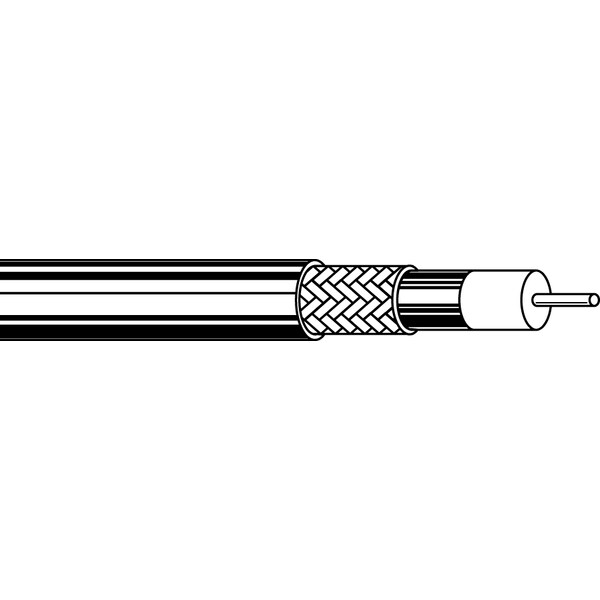

RG58 19 SOL BC FPE DUOFOIL +, 93% TC BRD PVC JKT 50 OHM BLK, 1000FT
| Shielding | Multiple, Specialty |
|---|---|
| Length | 1,000 ft |
| Impedance | 50 ohms (Nominal Impedance) |
| Color | Black |
| Insulation Material | Polyolefin (PO, PE, PP) |
| Conductor Material | Bare Copper |
| UL voltage rating | 300 V RMS |
| Suitability - Indoor | Yes |
| Put-Up Type | Reel |
| UL Flammability | UL1666 Vertical Shaft |
| EU Directive 2015/863/EU | Yes |
| EU CE Mark | Yes |
| Material@Insulation01 | PE - Polyethylene |
| Conductor Count | 1 |
| UL Temp Rating | 60°C |
| Jacket | PVC |
| Conductor Configuration | 1 Coax / Triax |
| Environmental Space | Indoor - Riser |
| CPR Euroclass | Eca |
| AWG Size | 19 |
| Material@OuterShield1 2 | Tinned Copper |
| Stranding@Conductor1 | Solid |
| CPR UKCA Class | Eca |
| CSA Flammability | FT4 |
| Jacketing Material | Pe-Polyethylene |
| Plenum | Riser |
| Outdoor | Yes Is Outdoor Grade Material |
| Package Quantity | 1 |
