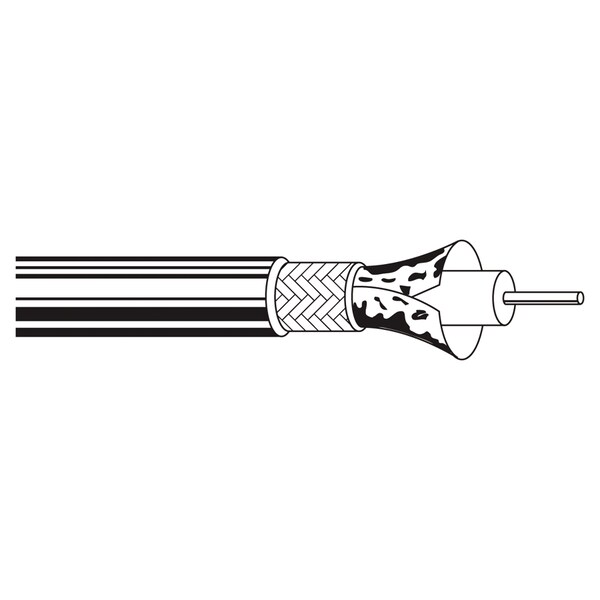

RG59 20 SOL CCS FPE DUOBOND+, 40% AL BRD PVC JKT NEC CM CATV, 1000FT
| Shielding | Foil + Braid |
|---|---|
| Length | 1,000 ft |
| Conductor Material | Copper Covered Steel |
| Impedance | 75 ohms (Nominal Impedance) |
| Color | Black |
| Insulation Material | Polyolefin (PO, PE, PP) |
| Material@Insulation01 | PE - Polyethylene |
| Put-Up Type | Reel |
| Conductor Count | 1 |
| Stranding@Conductor1 | Solid |
| CPR Euroclass | Eca |
| Jacket | PVC |
| UL Flammability | UL1685 UL Loading |
| Material@OuterShield1 2 | Aluminum |
| AWG Size | 20 |
| UL voltage rating | 300 V RMS |
| Environmental Space | Indoor |
| Conductor Configuration | 1 Coax / Triax |
| UL Temp Rating | 75°C |
| EU Directive 2015/863/EU | Yes |
| EU CE Mark | Yes |
| Suitability - Indoor | Yes |
| Plenum | General Purpose |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| CSA | FT1 VERTICAL FLAME TEST |
| Material | Steel |
| Package Quantity | 1 |
