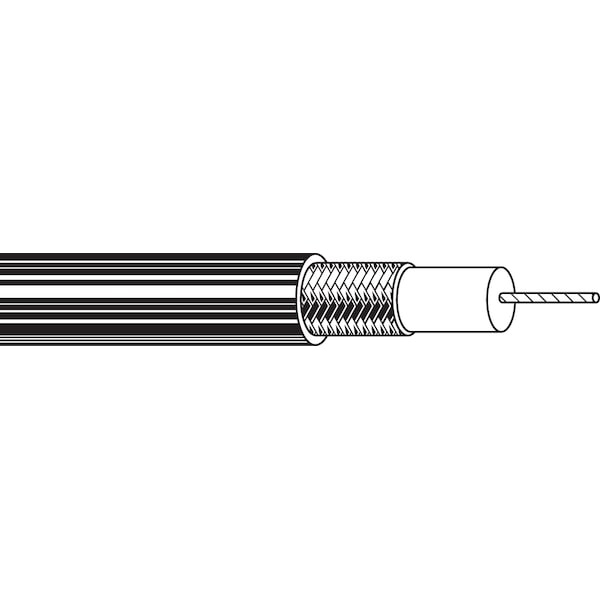

RG59 22 STR BC FPE 95% BC BRD, SHD PVC JKT NEC CM UL1354, 1000FT
| Shielding | Braid |
|---|---|
| Length | 500 ft |
| Insulation Material | Polyolefin (PO, PE, PP) |
| Color | Black |
| Impedance | 75 ohms (Nominal Impedance) |
| UL Flammability | UL1685 UL Loading |
| CPR UKCA Class | Eca |
| Jacket | PVC |
| Suitability - Aerial | Yes - Black only, when supported by messenger wire |
| EU Directive 2015/863/EU | Yes |
| UL AWM Style | AWM 1354 |
| CPR Euroclass | Eca |
| EU CE Mark | Yes |
| Stranding@Conductor1 | 7x30 |
| Suitability - Indoor | Yes |
| Put-Up Type | Reel |
| AWG Size | 22 |
| UL voltage rating | 300 V RMS |
| Conductor Count | 1 |
| Material@Insulation01 | PE - Polyethylene |
| Conductor Configuration | 1 Coax / Triax |
| Environmental Space | Indoor |
| Material | Bare Copper |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| CSA | FT1 VERTICAL FLAME TEST |
| Plenum | General Purpose |
| Outdoor | Yes Is Outdoor Grade Material |
| Package Quantity | 1 |
